Plan No.321111

Charming Plan

What a charming plan - both inside and out. Wood siding and a covered porch grace the facade and hint at the fine floor plan inside. The main entry opens to a center hall and shows living areas on the left side and bedrooms on the right. The living room has a fireplace and is defined by columns that separate it from the hall and dining area. Sliding glass doors in the dining room lead outside. An L-shaped kitchen has an island work center and window sink. The sleeping area includes two family bedrooms with a shared bath and a master suite with walk-in closet and private bath with dual sinks. The two-car garage faces front and is reached via a service entry with space for a washer and dryer. Note the hall linen and coat closets.


Total 1251 sq ft

  • Main: 1251
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 439


  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 40'0
  • Depth: 58'0


  • Max Ridge Height: 20'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12

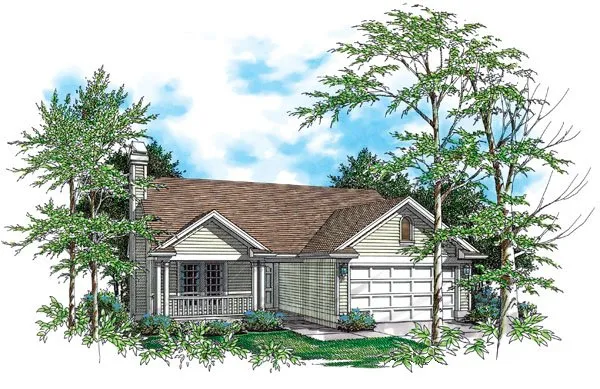

Full Rendering –

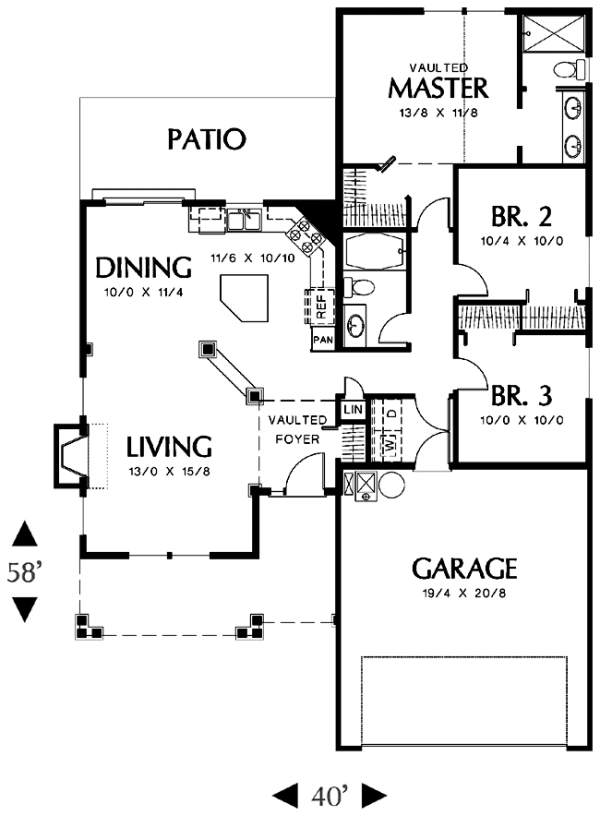

MAIN Plan –

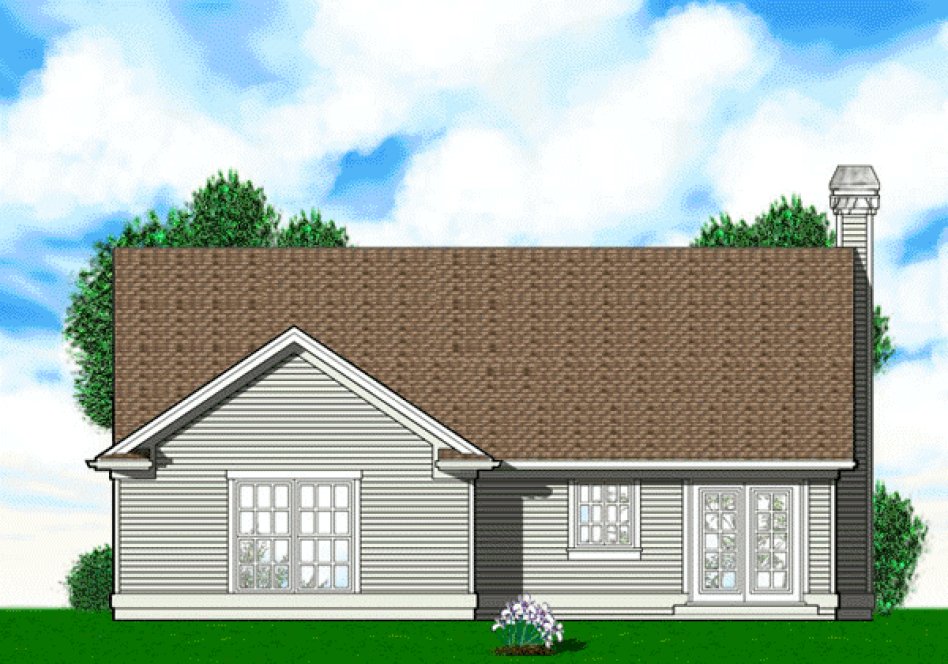

REAR Elevation –
