Plan No.328011

Bay Window in Den

Traditional and contemporary combine on the exterior of this one-story home to create an attractive facade. Though smaller in square footage, high rooflines allow for volume ceilings to give the impression of more spacious interiors. The entry is located at the side of the home and is recessed and angled. It opens to a foyer with a den on one side and the great room on the other. The den has double doors and a bay window; the great room has a fireplace and access to the rear patio. Decorative columns define the island in the L-shaped kitchen. The master suite features sliding glass doors to the patio and also has a walk-in closet and private bath. One additional bedroom sits directly behind the two-car garage. A washer/dryer alcove is placed conveniently in the service hall to the garage.


Total 1295 sq ft

  • Main: 1295
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 445


  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 40'0
  • Depth: 52'0


  • Max Ridge Height: 21'0
  • Comments: (Main Fl to Peak)
  • Primary Pitch: 8/12
  • Secondary Pitch: 0/12
Full Rendering –

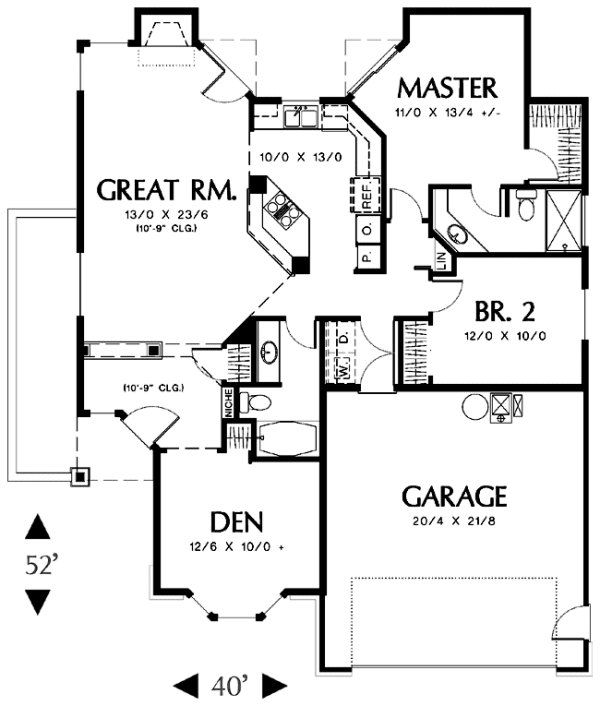

MAIN Plan –

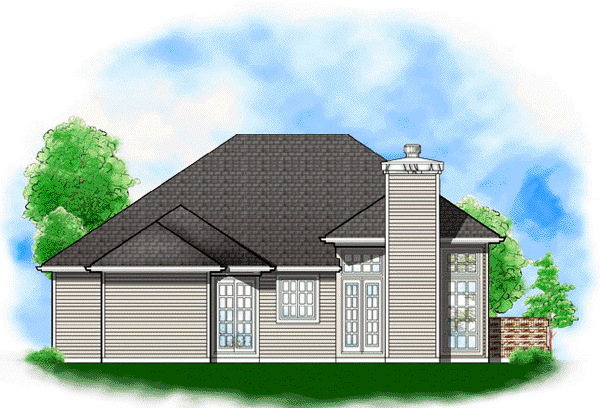

REAR Elevation –
