Plan No.326011

Great Room Plan with Covered Patio

Diminutive in size, but long on livability, this home opens with classic good looks and a skylit entry foyer. One large living area - the great room - serves both formal and informal occasions, and contains a vaulted ceiling and focal-point fireplace. The dining room is nearby. It has sliding glass doors to a rear, covered patio. The modified G-shaped kitchen offers a snack-bar pass-through to the dining area. The den (or make it Bedroom 3) opens through double doors just to the left of the entry. It has a Palladian window and vaulted ceiling. Two additional bedrooms sit behind the two-car garage. The master suite salon is vaulted and adjoins a full bath. An additional full bath serves Bedrooms 2 and 3. Note the hall closet and linen storage across from the laundry alcove.


Total 1316 sq ft

  • Main: 1316
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 440


  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:


  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 46'0
  • Depth: 50'0


  • Max Ridge Height: 21'4
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 10.00/12
  • Secondary Pitch: /12
Full Rendering –

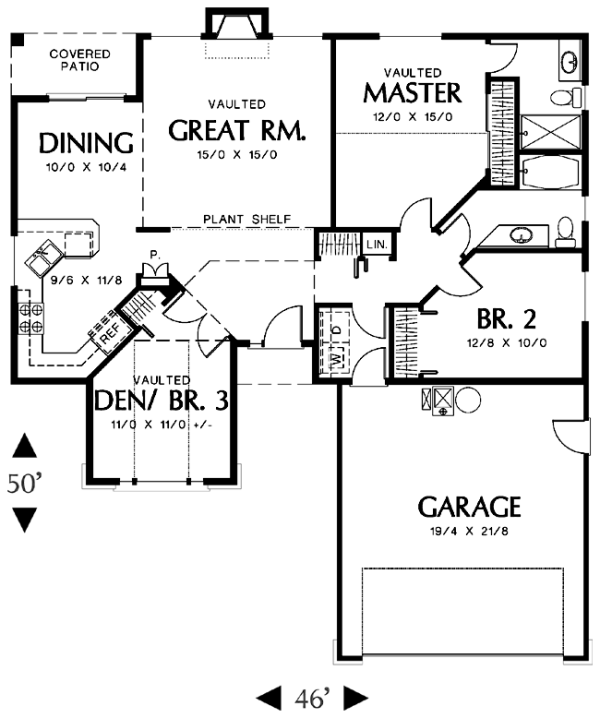

MAIN Plan –

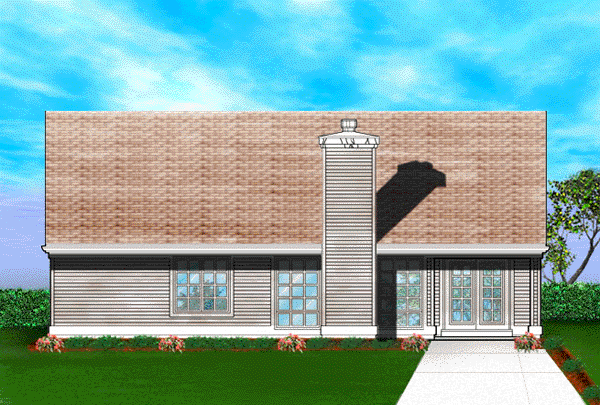

REAR Elevation –
