Plan No.114202

Vaulted Splendor

The opening Foyer leads right into a family room warmed by a fireplace and on to a cozy breakfast nook conveniently adjacent to the kitchen. A vaulted ceiling gives the master bedroom a distinguished look, while a handy utility room and storage area flank the spacious garage. Upstairs, a full bath serves three bedrooms, with the option of a fourth. This home is designed with a basement foundation.

Specifications

Total 2024 sq ft

  • Main: 1395
  • Second: 629
  • Third:
  • Loft/Bonus:
  • Basement: 1395
  • Garage: 463

Rooms

  • Beds: 4
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0"
  • Second: 8'0"
  • Third:
  • Loft/Bonus:
  • Basement: 8'0"
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 58'0"
  • Depth: 36'0"

Roof

  • Max Ridge Height: 29'0"
  • Comments: ()
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

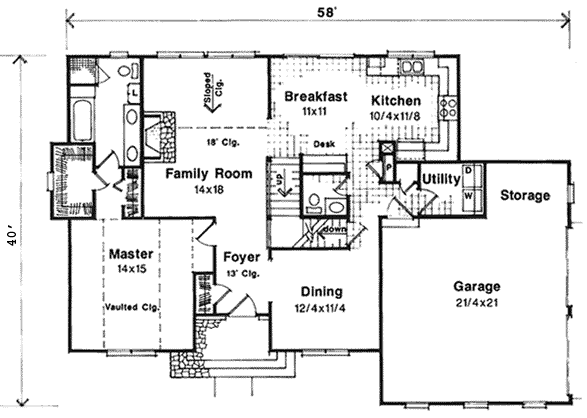

MAIN Plan – westhomeplanners.com

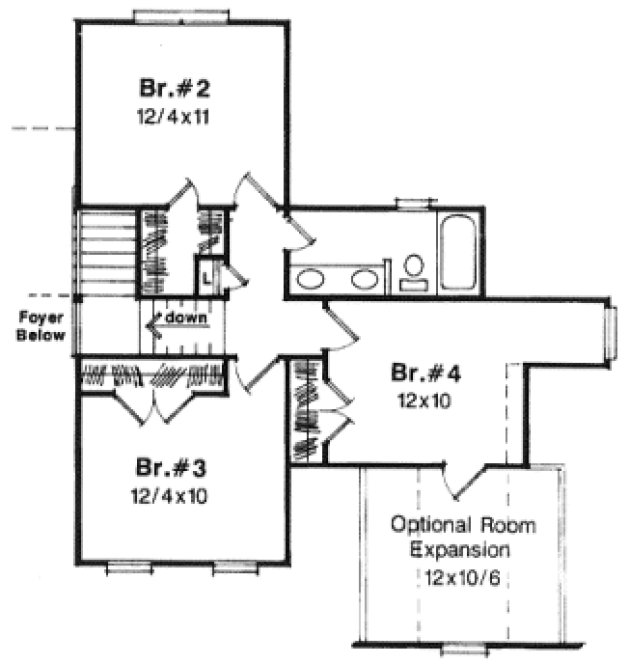

SECOND Plan – westhomeplanners.com

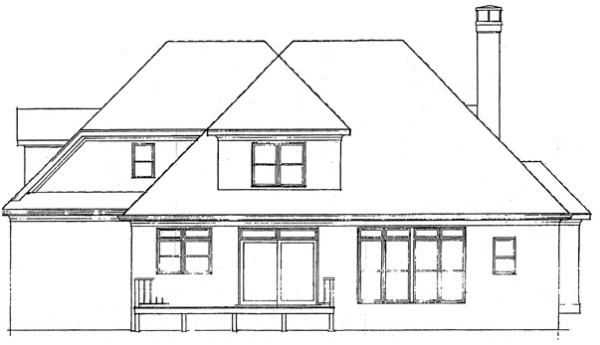

REAR Elevation – westhomeplanners.com
