Plan No.110102

With A Southern Drawl

This plan was designed with family living in mind. The floor plan maintains a good traffic flow on the first floor. Imagine peace and quiet in the first floor master suite while the children are in the children's play area on the second floor. Yes, a retreat from the stresses of the day can be found in the master suite while the healthy, noisiness of children playing is out of ear shot on the second floor. Why you even have the option to expand into the Bonus area! All this and an exterior accented with a Southern touch!

Specifications

Total 2010 sq ft

  • Main: 1269
  • Second: 741
  • Third:
  • Loft/Bonus: 313
  • Basement: 1269
  • Garage: 514

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus: 8'0
  • Basement: 8'0
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 43'0
  • Depth: 69'4

Roof

  • Max Ridge Height: 26'2
  • Comments: ()
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

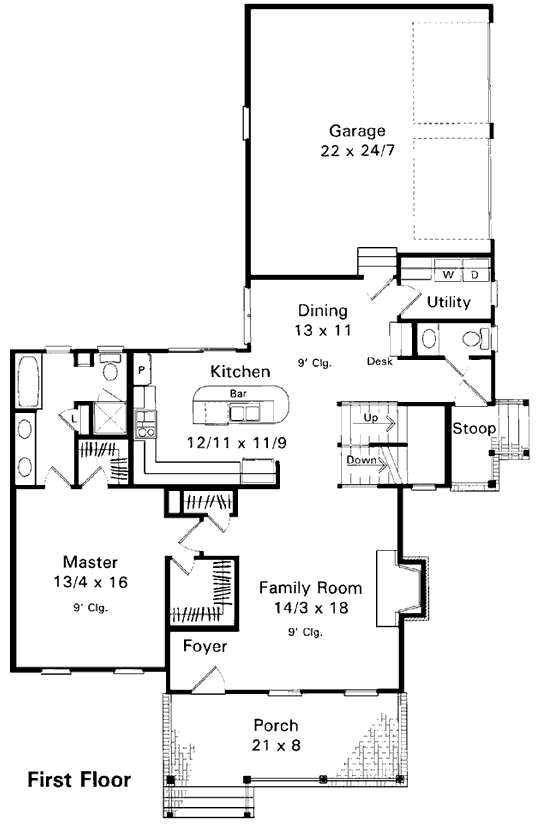

MAIN Plan – westhomeplanners.com

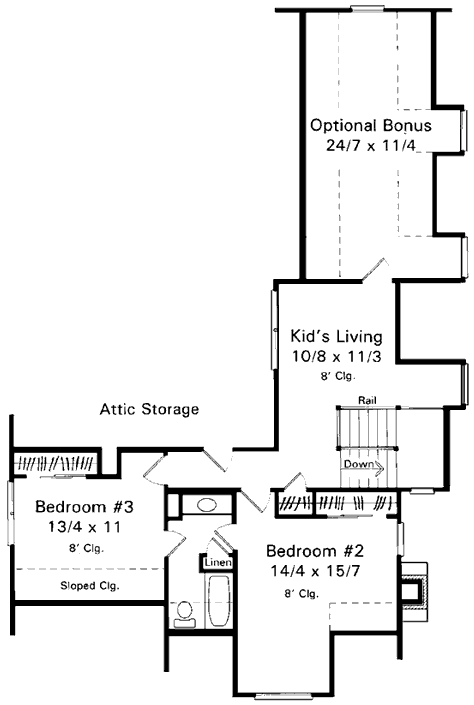

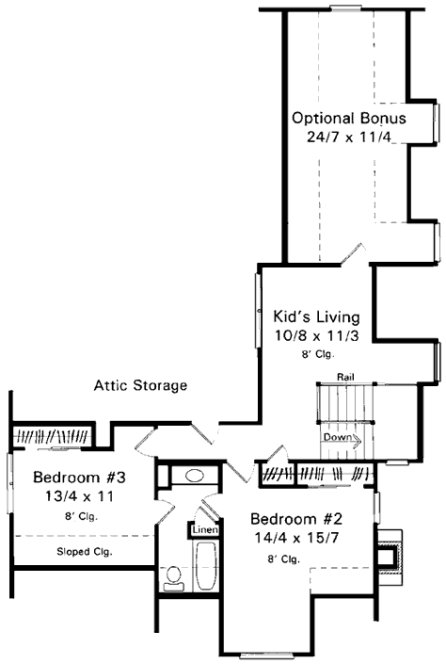

SECOND Plan – westhomeplanners.com
