Plan No.195169

Micro Duplex

This micro duplex design fits all the features of a full sized home into a very small package. Three bedrooms, an en suite and walk-in closet in the master bedroom, and a powder room on the main floor for guests, it is an excellent choice for a starter home or a compact lot situation. Floor Areas; Main Floor: 800 sq. ft. (400 per unit) Second Floor: 1000 sq.ft. (500 per unit)

Specifications

Total 900 sq ft

  • Main: 400
  • Second: 500
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 21'0
  • Depth: 52'0

Roof

  • Max Ridge Height: 25'0
  • Primary Pitch: 6.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

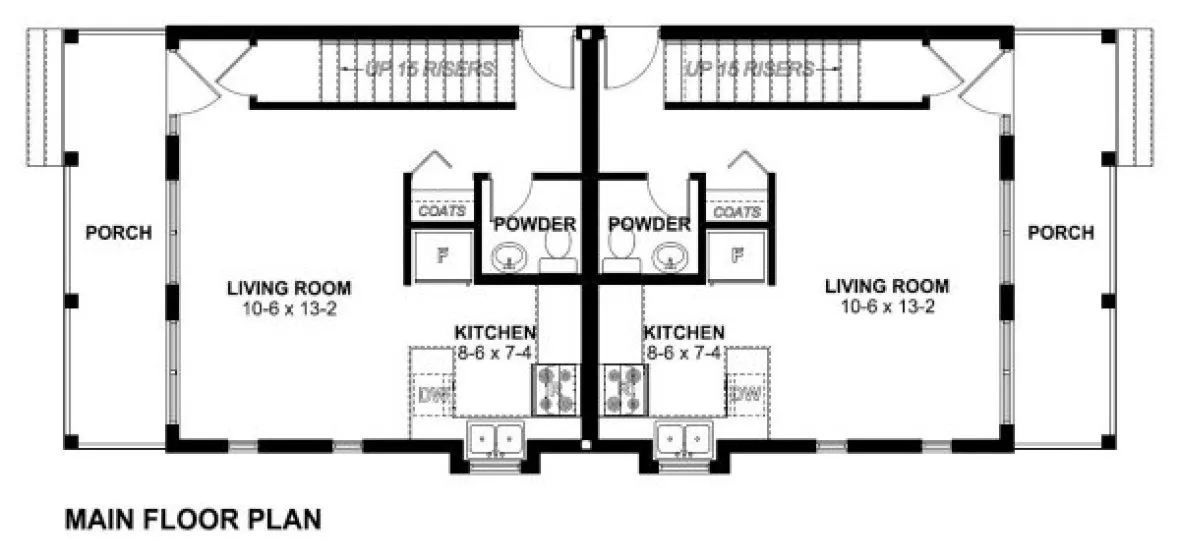

MAIN Plan – westhomeplanners.com

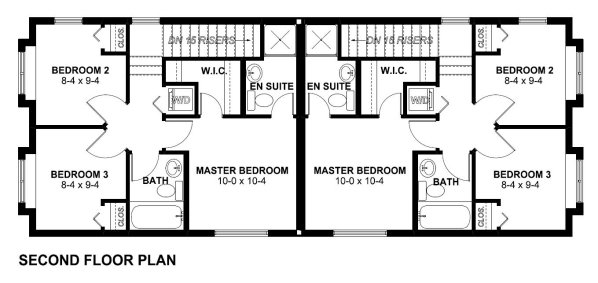

SECOND Plan – westhomeplanners.com

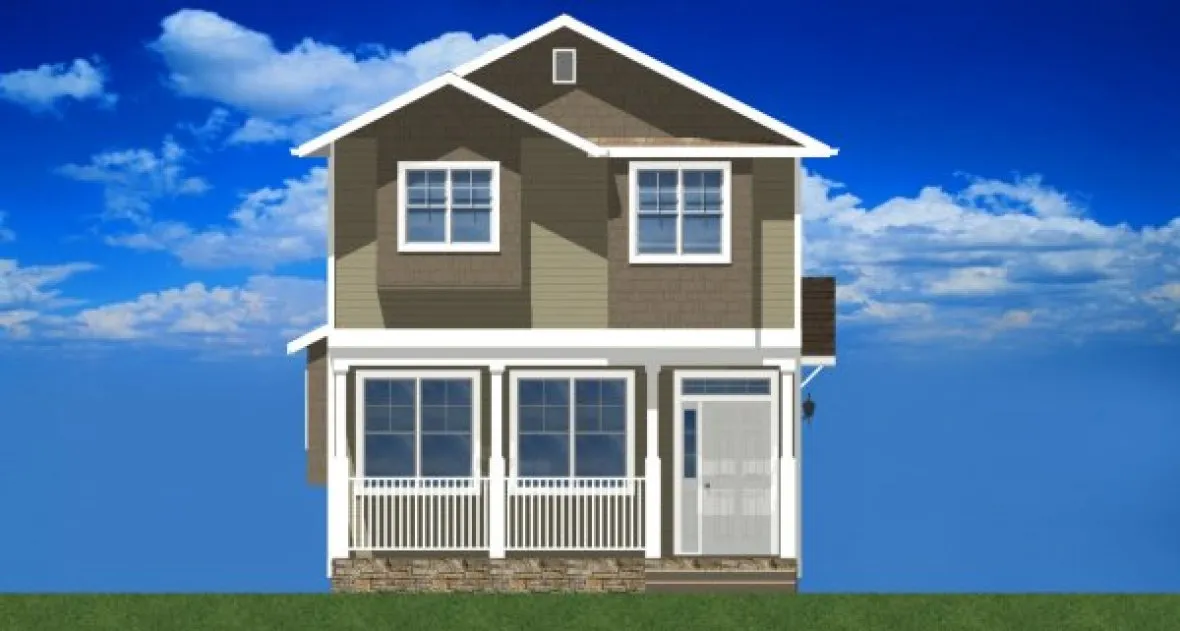

REAR Elevation – westhomeplanners.com

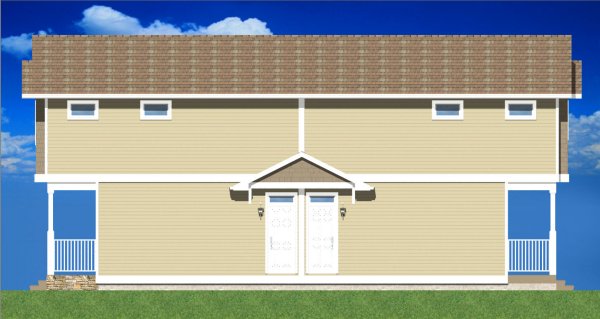

LEFT Elevation – westhomeplanners.com

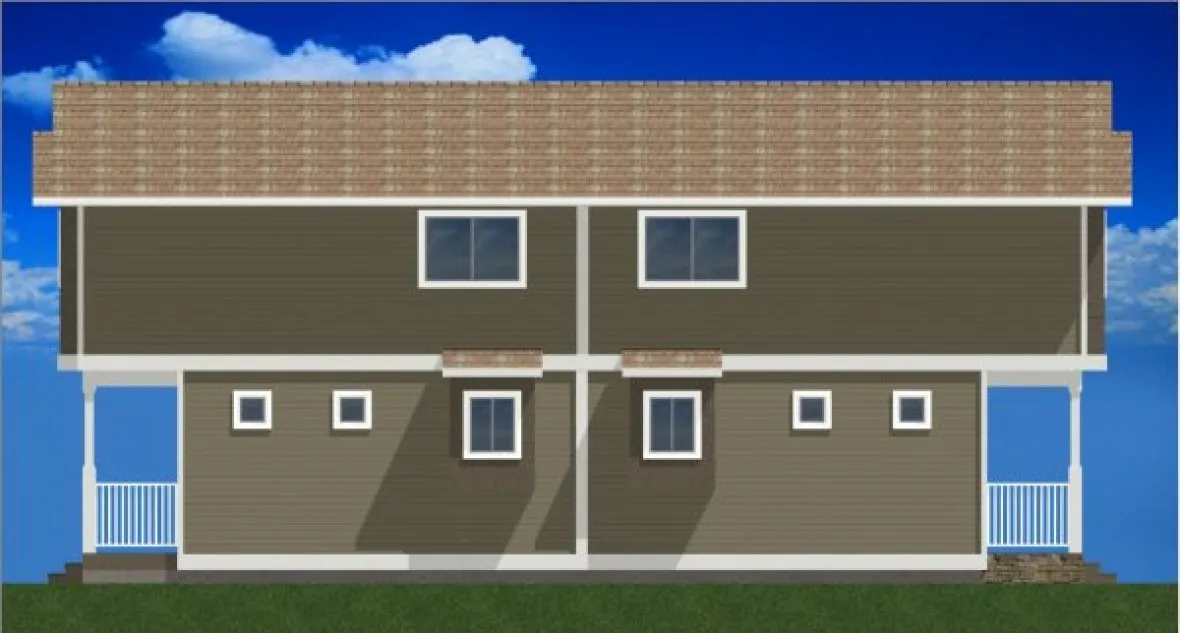

RIGHT Elevation – westhomeplanners.com
