Plan No.195003

Small & Narrow Lot Duplex

This duplex plan was designed with not only a narrow lot in mind but a small lot as well, yet it still has the amenities to make for comfortable living. Two bedrooms and a bath upstairs and an open living area down with a powder room for company has what you need for a perfect starter home.Floor Areas; Main Floor: 934 sq. ft. (467 per unit) Second Floor: 920 sq.ft. (460 per unit).

Specifications

Total 927 sq ft

  • Main: 467
  • Second: 460
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 2
  • Baths: 1
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0"
  • Second: 8'0"
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 21'6"
  • Depth: 61'0"

Roof

  • Max Ridge Height: 25'4"
  • Primary Pitch: 5.00/12
  • Secondary Pitch: /12

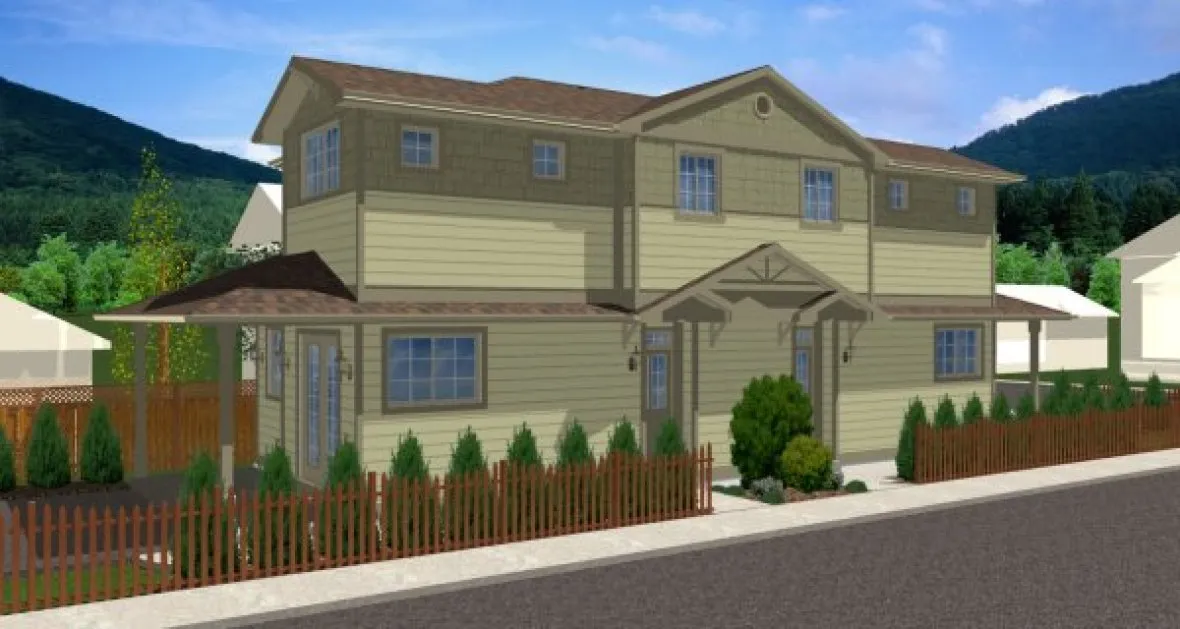

Full Rendering – westhomeplanners.com

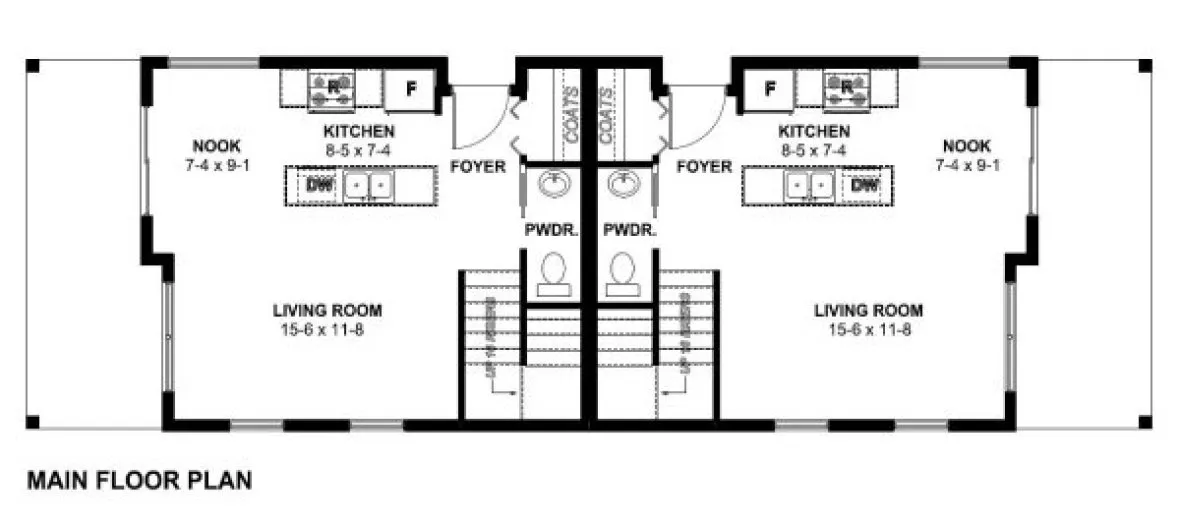

MAIN Plan – westhomeplanners.com

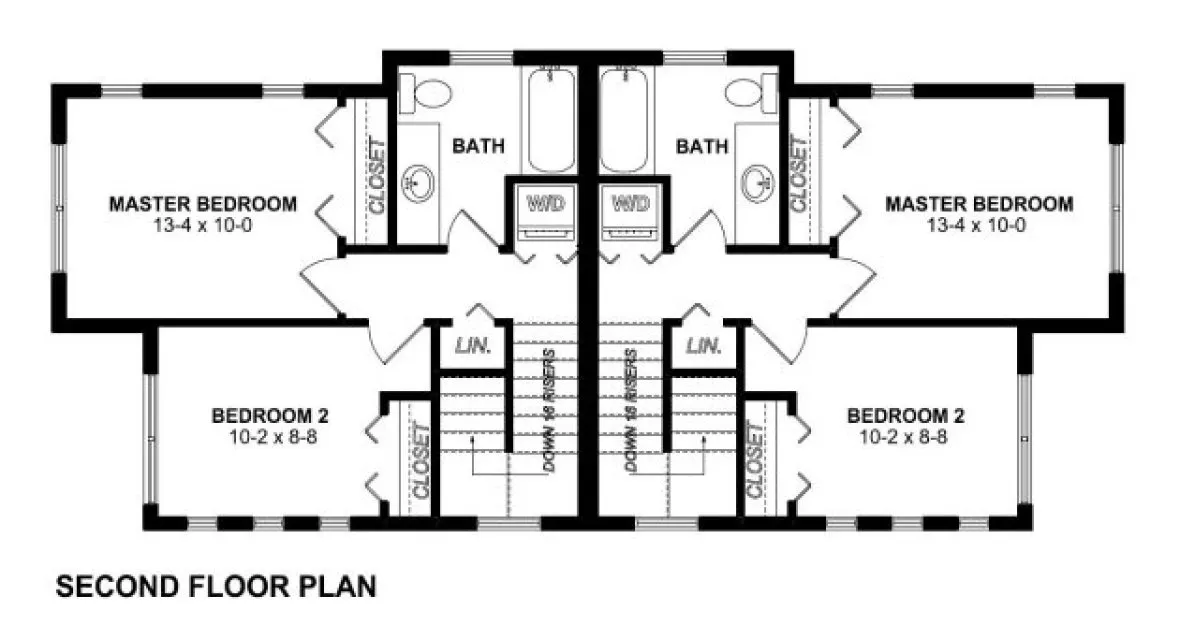

SECOND Plan – westhomeplanners.com

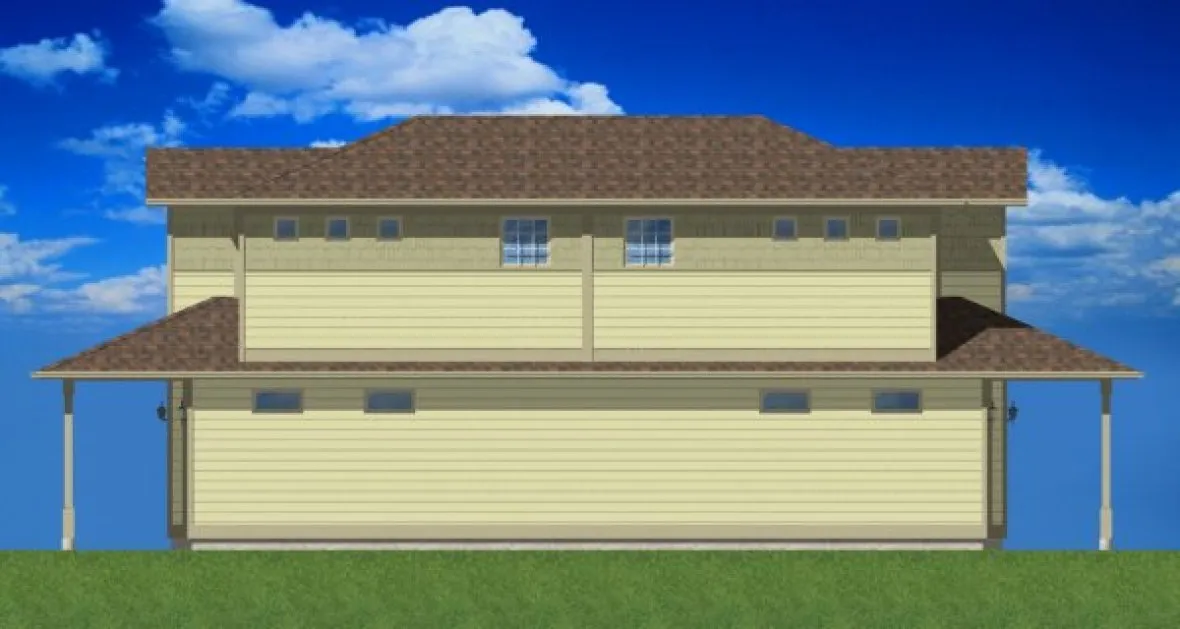

REAR Elevation – westhomeplanners.com

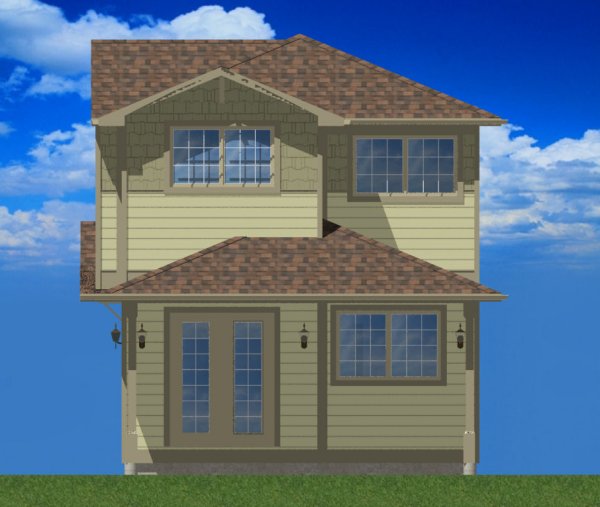

LEFT Elevation – westhomeplanners.com

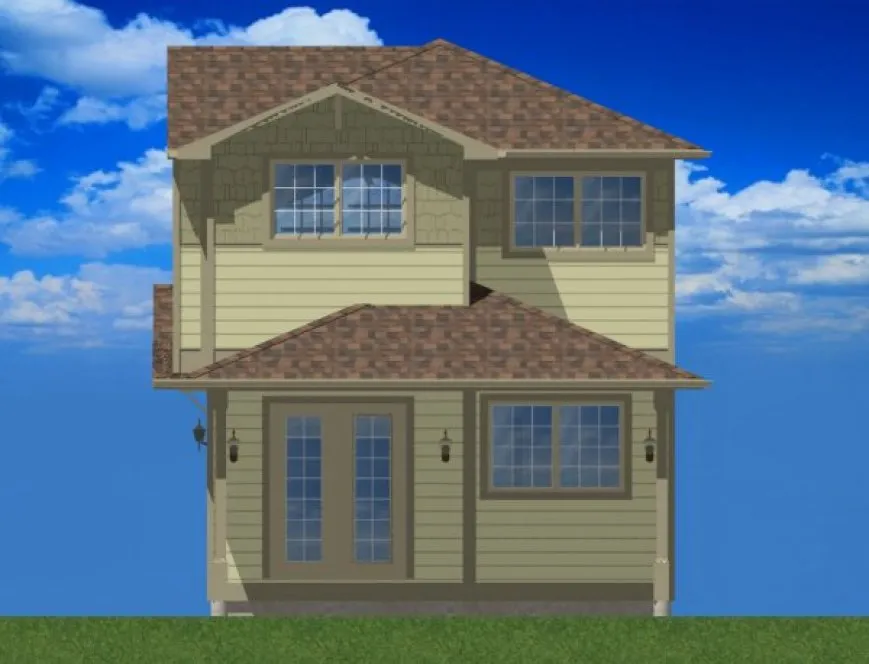

RIGHT Elevation – westhomeplanners.com
