Plan No.195002

Craftsman Style Duplex

This side by side Craftsman style duplex features a modern and open layout designed for comfortable living. The master bedroom is complete with a walk-in closet and ensuite, and the two other bedrooms make it perfect as a home for family life. Each unit features its own single car garage, laundry room, and main floor powder room. An optional unfinished basement foundation also gives the option of a recreation room or extra bedrooms. Floor Areas; Main Floor: 1176 sq. ft. (588 per unit) Second Floor: 1666 sq.ft. (833 per unit) Garage Area: 588 sq.ft. (294 per unit).

Specifications

Total 2842 sq ft

  • Main: 588
  • Second: 833
  • Third:
  • Loft/Bonus:
  • Basement: 588
  • Garage: 294

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage: 9'4

Details

  • Exterior Walls: 2x6
  • Garage Type: singleGarage
  • Width: 43'0
  • Depth: 56'0

Roof

  • Max Ridge Height: 27'0
  • Primary Pitch: 6.00/12
  • Secondary Pitch: /12

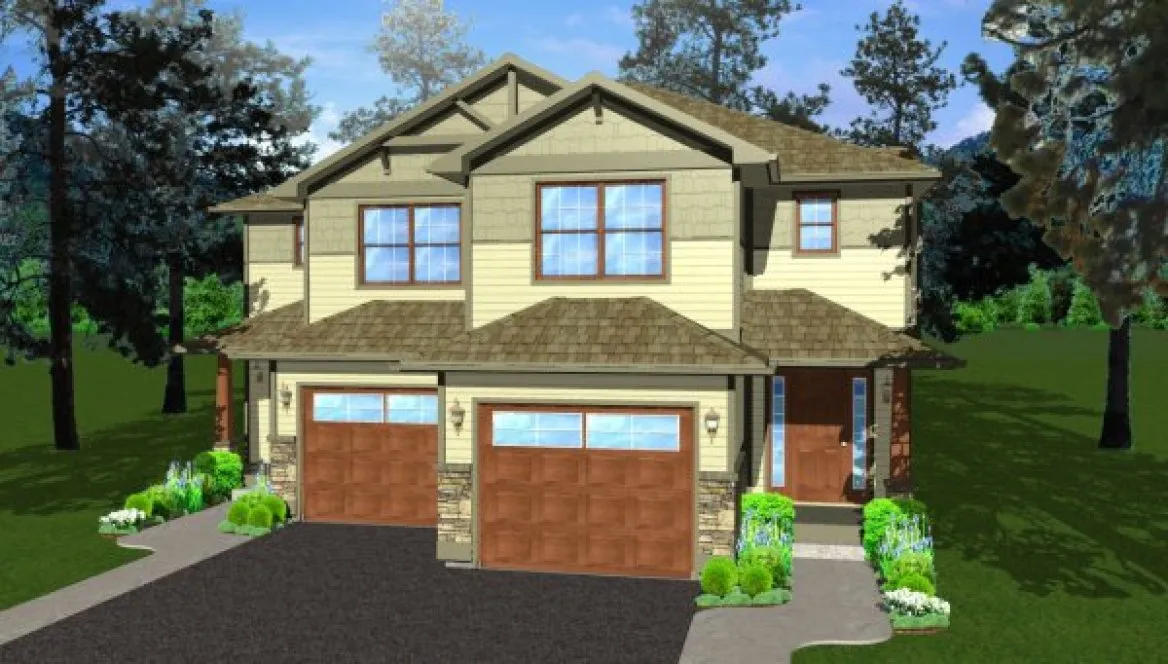

Full Rendering – westhomeplanners.com

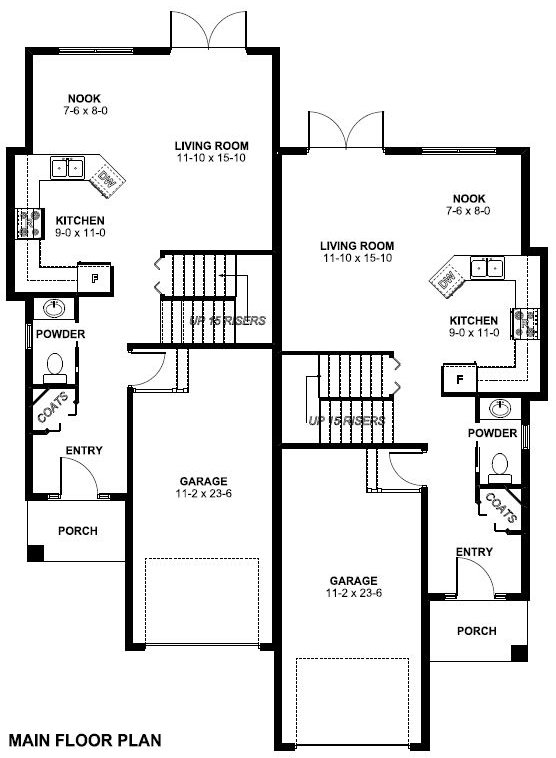

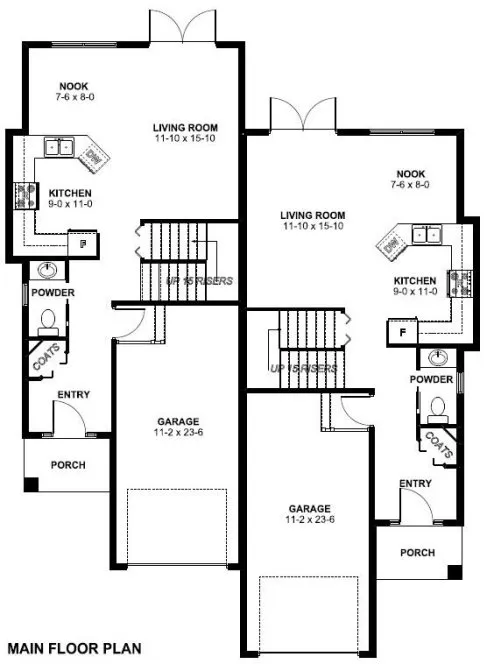

MAIN Plan – westhomeplanners.com

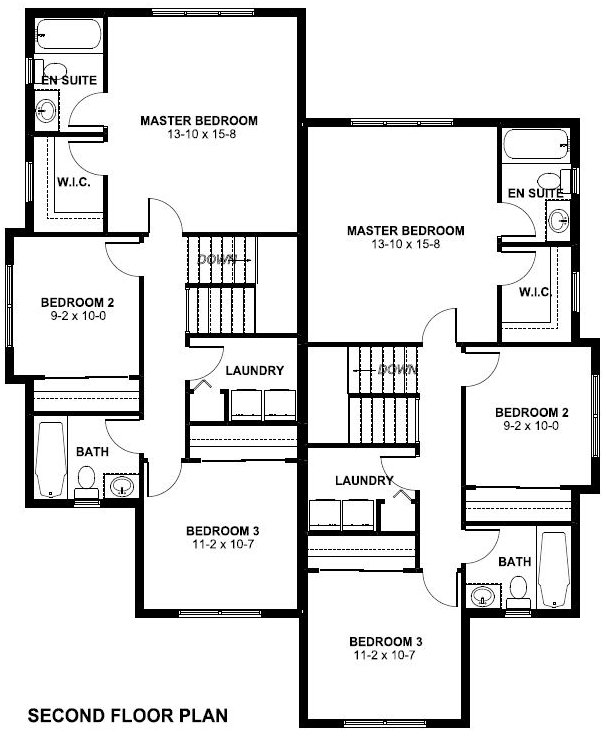

SECOND Plan – westhomeplanners.com

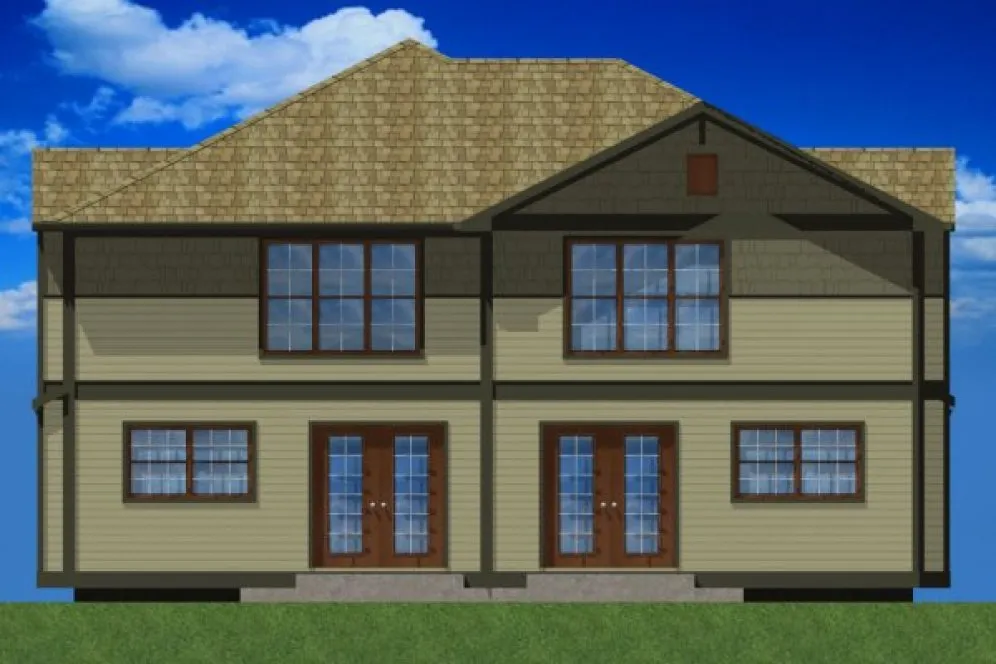

REAR Elevation – westhomeplanners.com

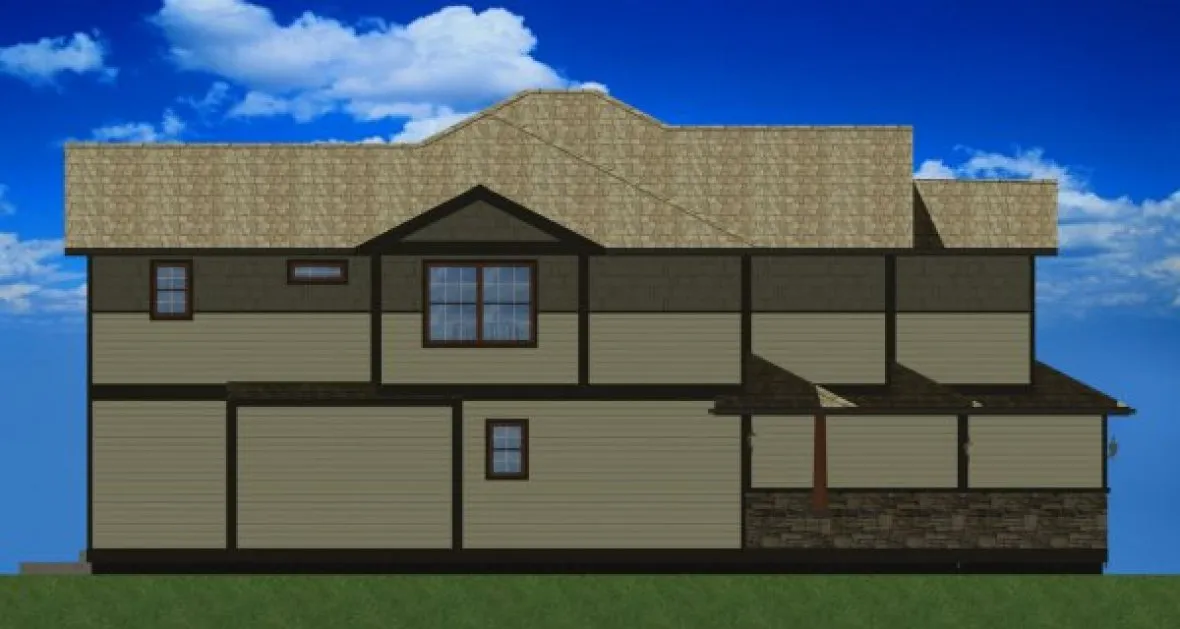

LEFT Elevation – westhomeplanners.com

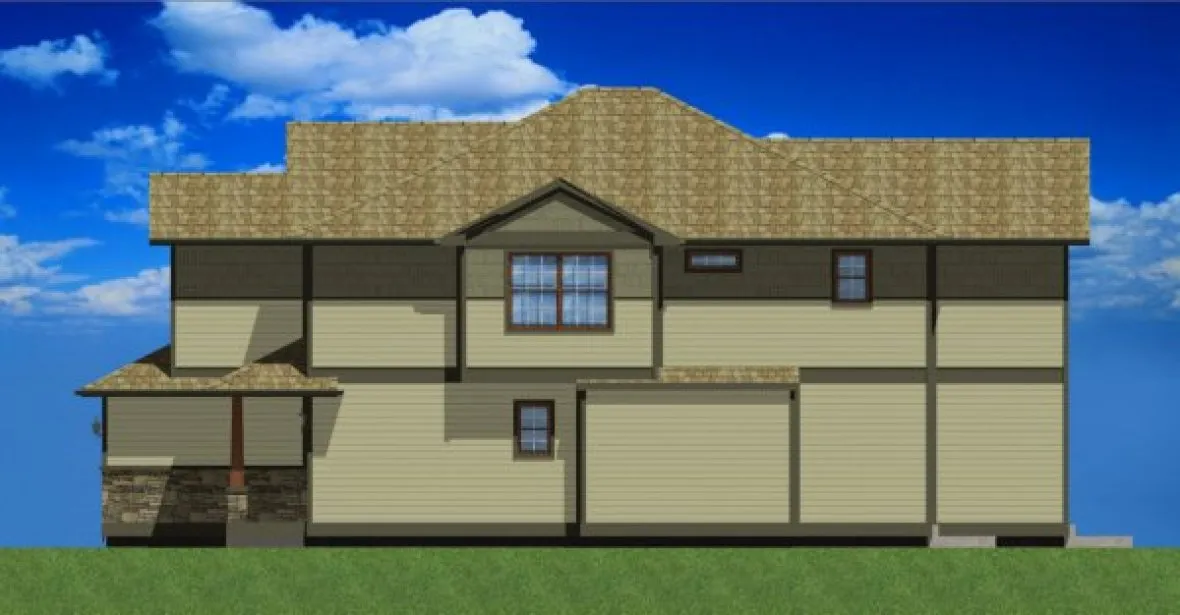

RIGHT Elevation – westhomeplanners.com
