Plan No.195025

Compact Four-Plex

This compact four unit townhouse will fit your needs in many small lot situations while giving all the amenities of larger units. Three bedrooms and a bathroom upstairs and all the living on the main floor with its own powder room and laundry make for a comfortable home. Floor Areas are as follows; Main Floor: 2170 sq. ft. (543 per unit) Second Floor: 2205 sq.ft. (551 per unit) Deck Area: 578 sq.ft. (144 per unit)

Specifications

Total 4376 sq ft

  • Main: 543
  • Second: 551
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 41'9
  • Depth: 70'1

Roof

  • Max Ridge Height: 33'3
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12

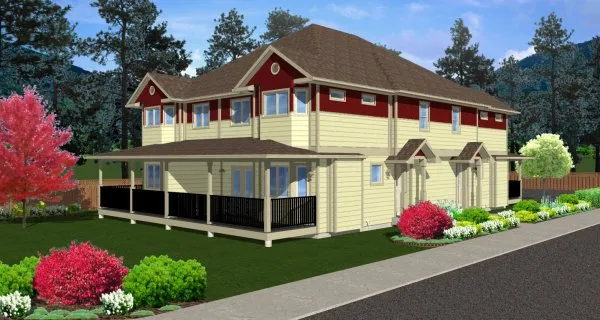

Full Rendering – westhomeplanners.com

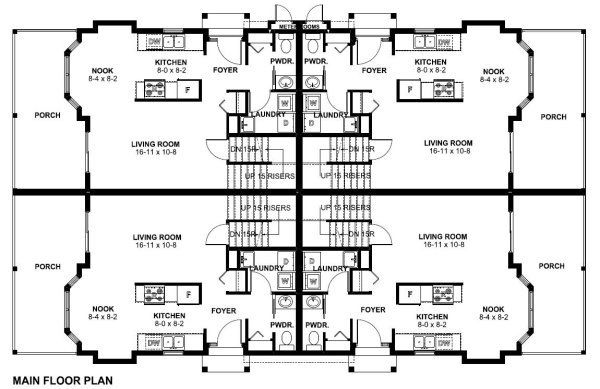

MAIN Plan – westhomeplanners.com

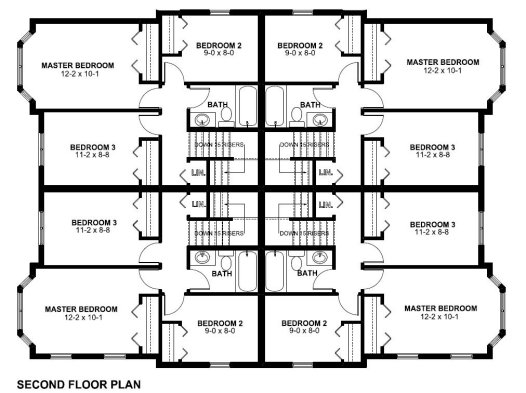

SECOND Plan – westhomeplanners.com

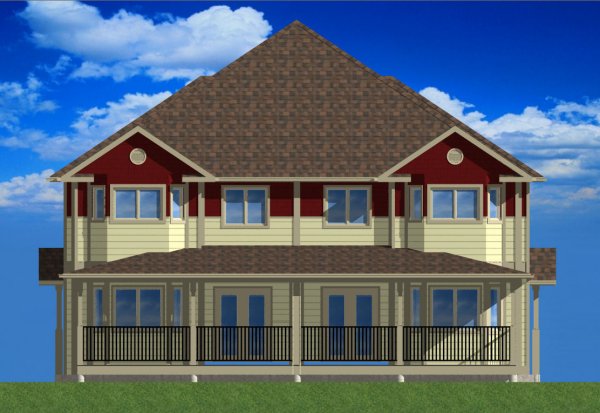

REAR Elevation – westhomeplanners.com

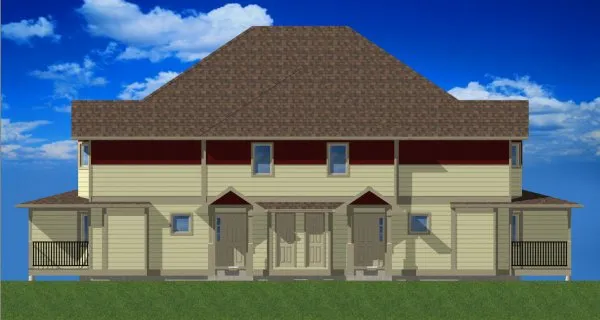

LEFT Elevation – westhomeplanners.com

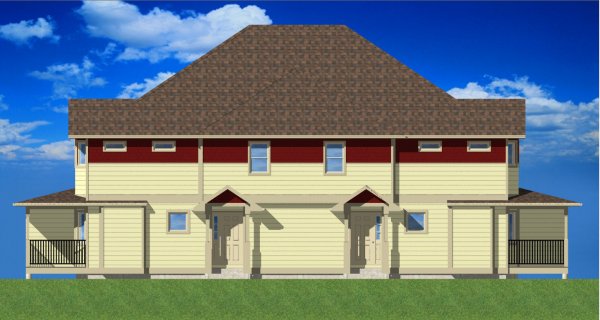

RIGHT Elevation – westhomeplanners.com
