Plan No.277062

Livable Floor Plan

This elegant 1-1/2 story design boasts luxurious features and a very "livable" floor plan. The attractive brick exterior is accented with stucco quoins and keystones. The popular "master-down" design offers some of today's most requested features in a modest 2601 square feet. Just beyond the lovely glass front entry lies an open foyer which vaults to 18'. To the right is a spacious dining room with a 4" raised floor surrounded by decorative columns. Just beyond the "bridge" is the 16' x 17'-7" great room which vaults to 18'. The sumptuous master suite includes a tray ceiling. It's bath is vaulted and features a dressing area with his and hers walk-in closets. The kitchen offers abundant cabinet space and includes the "much-requested" center island. There's also a large laundry room with a laundry tub. Lower level rooms which are not vaulted have 9' ceilings. Upstairs, accessed by the "bridge", are the two secondary bedrooms, measuring 11'-3" x 12'-5" and 11'-11" x 13'-4". The bonus areas allow for the addition of a 4th bedroom, a bath, and a home office. All upper level rooms have 8' ceilings.

Specifications

Total 2601 sq ft

  • Main: 1957
  • Second: 644
  • Third:
  • Loft/Bonus:
  • Basement: 1957
  • Garage: 636

Rooms

  • Beds: 4
  • Baths: 3
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage: 10'4

Details

  • Exterior Walls: 2x4
  • Garage Type: tripleGarage
  • Width: 58'0
  • Depth: 61'0

Roof

  • Max Ridge Height: 28'1
  • Comments: ()
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

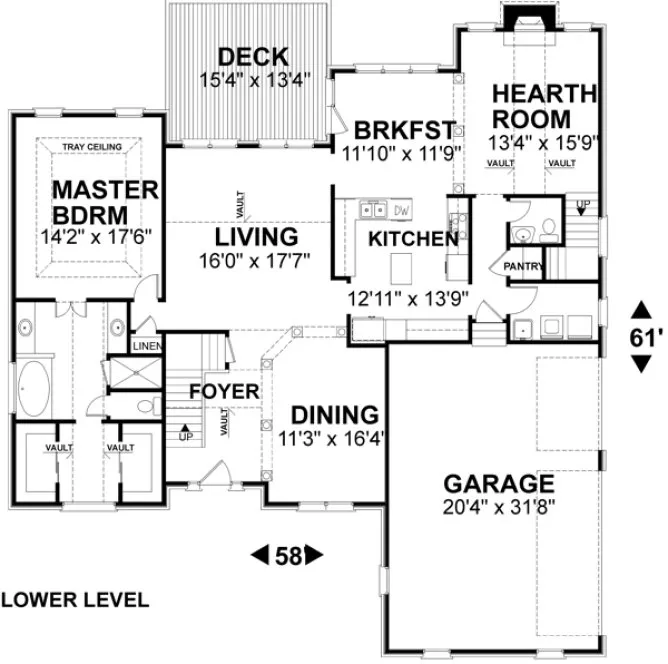

MAIN Plan – westhomeplanners.com
SECOND Plan – westhomeplanners.com

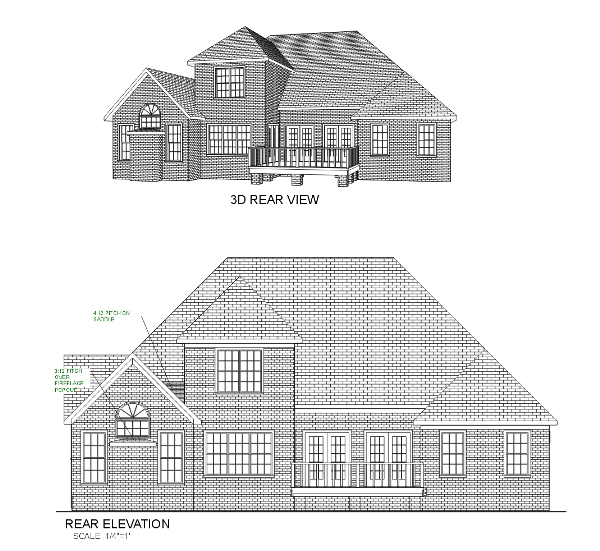

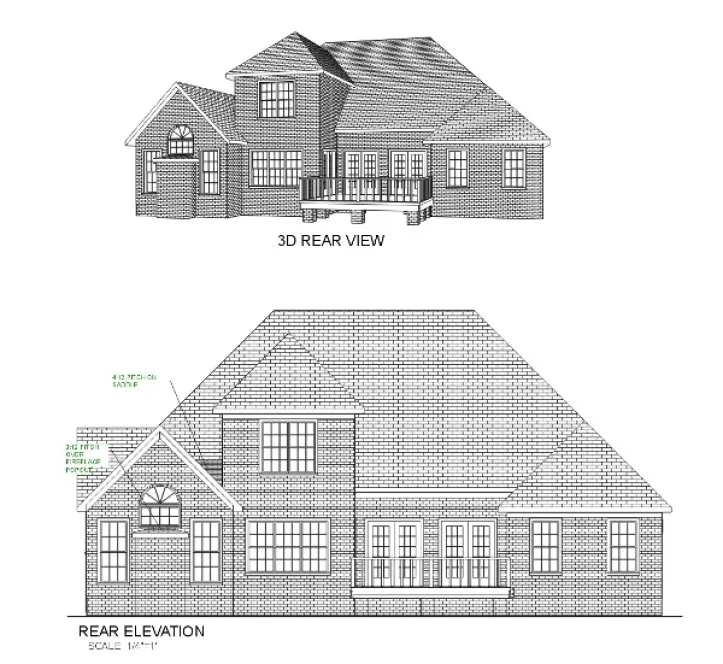

REAR Elevation – westhomeplanners.com
