Plan No.128043

Vacation Bungalow with Elevator

The maximum ridge height is measured from the first floor level. This plan has an elevator as well as a basement with a drive-under garage.

Specifications

Total 3408 sq ft

  • Main: 1407
  • Second: 1059
  • Third:
  • Loft/Bonus:
  • Basement: 942
  • Garage: 417

Rooms

  • Beds: 4
  • Baths: 3
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 10'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 11'4

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 40'0
  • Depth: 58'0

Roof

  • Max Ridge Height: 27'0
  • Comments: ()
  • Primary Pitch: 9.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

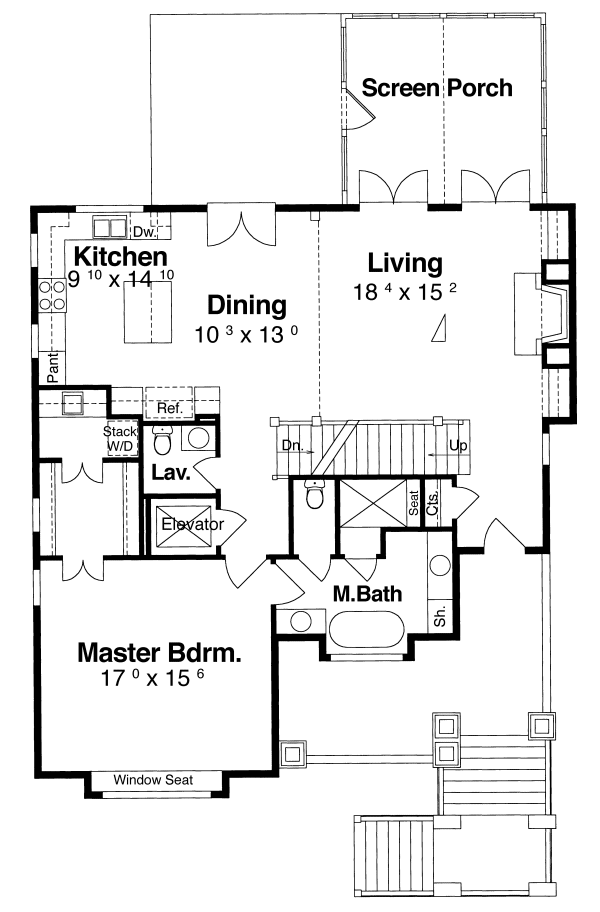

MAIN Plan – westhomeplanners.com

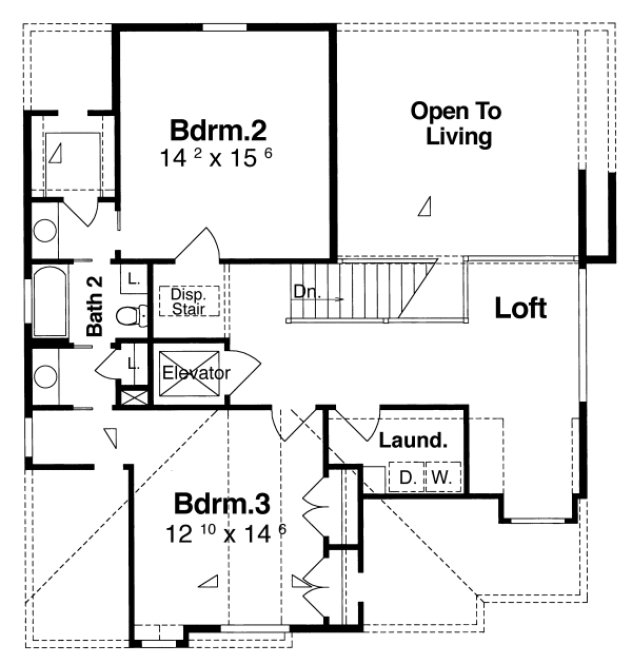

SECOND Plan – westhomeplanners.com

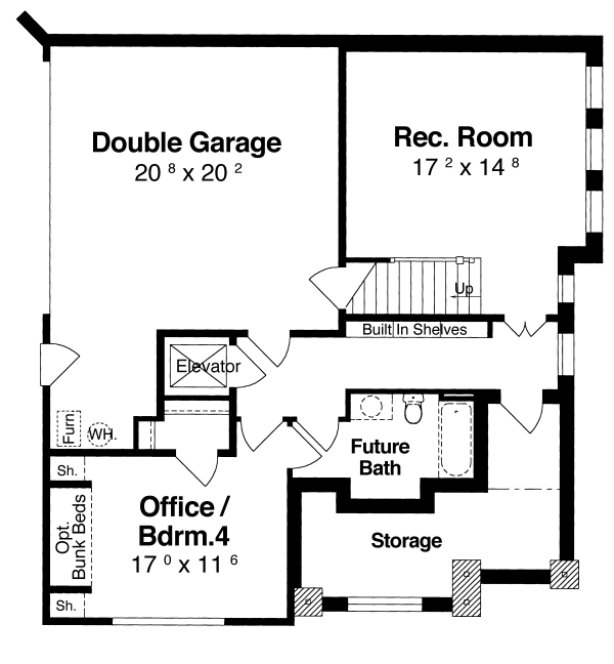

BASEMENT Plan – westhomeplanners.com

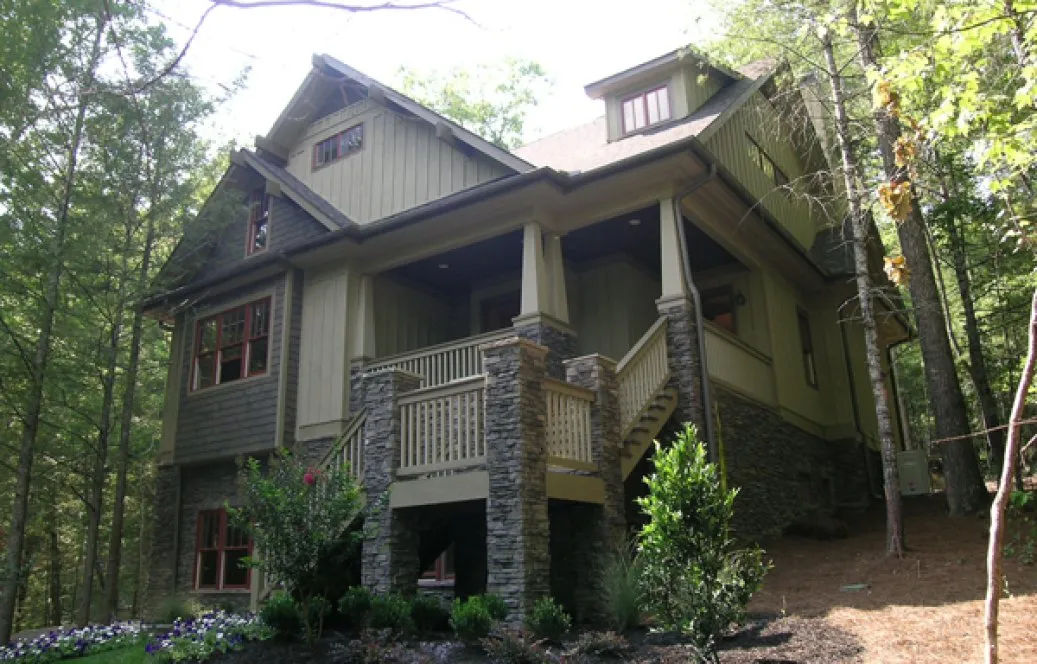

Front Right Photo – westhomeplanners.com

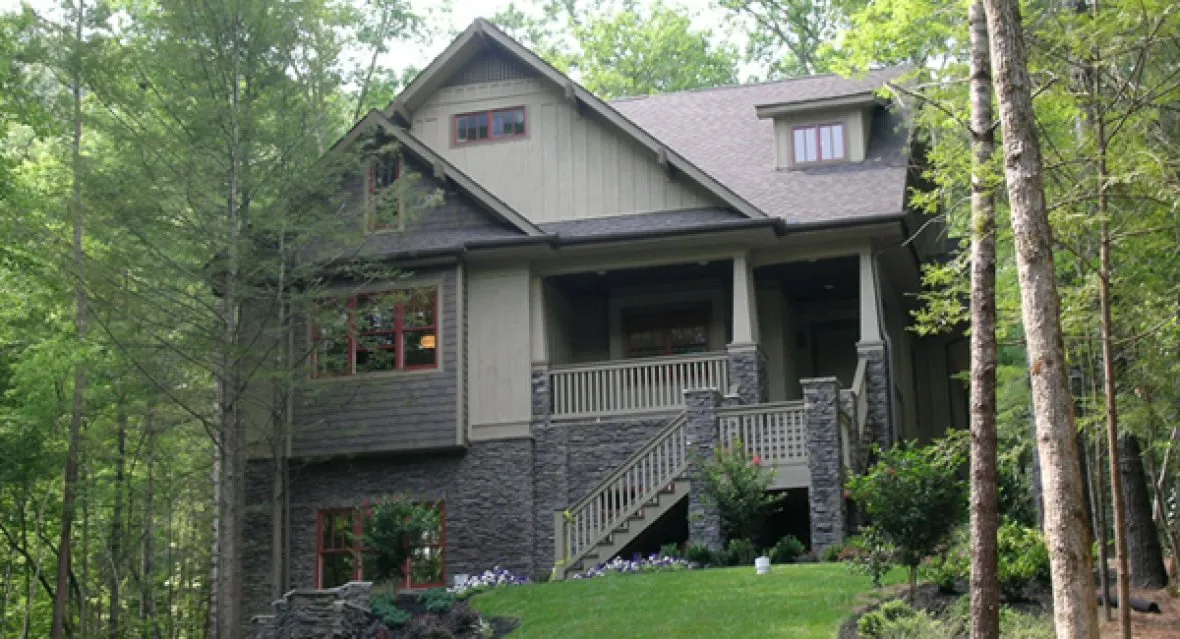

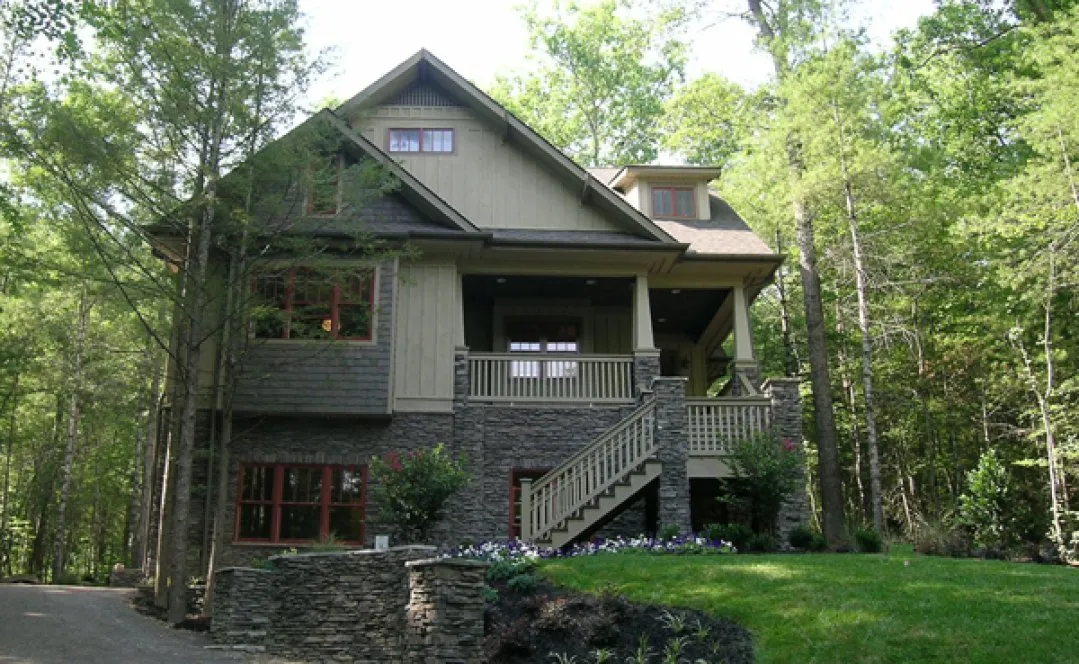

Front Photo – westhomeplanners.com
Front Photo – westhomeplanners.com

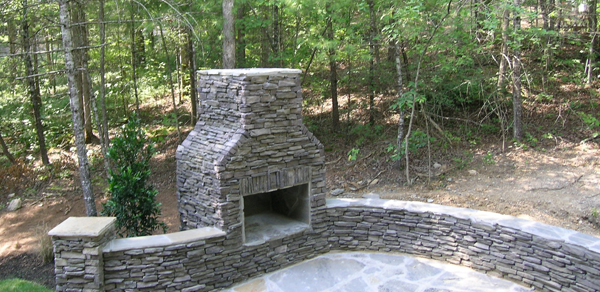

Outdoor Fireplace – westhomeplanners.com

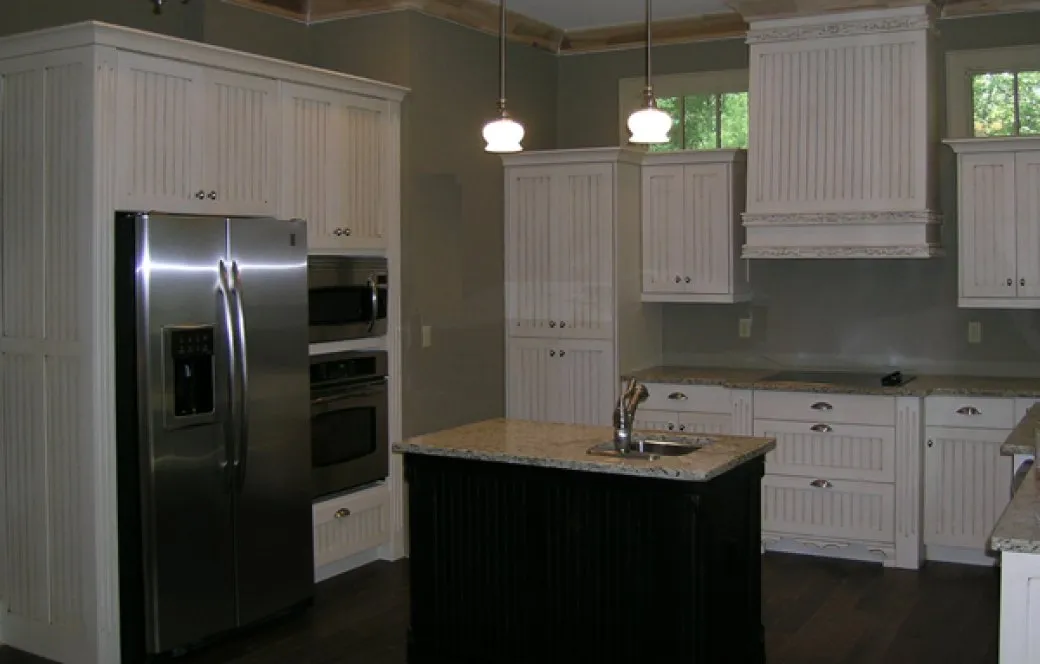

Kitchen – westhomeplanners.com
Second Fl Balcony – westhomeplanners.com

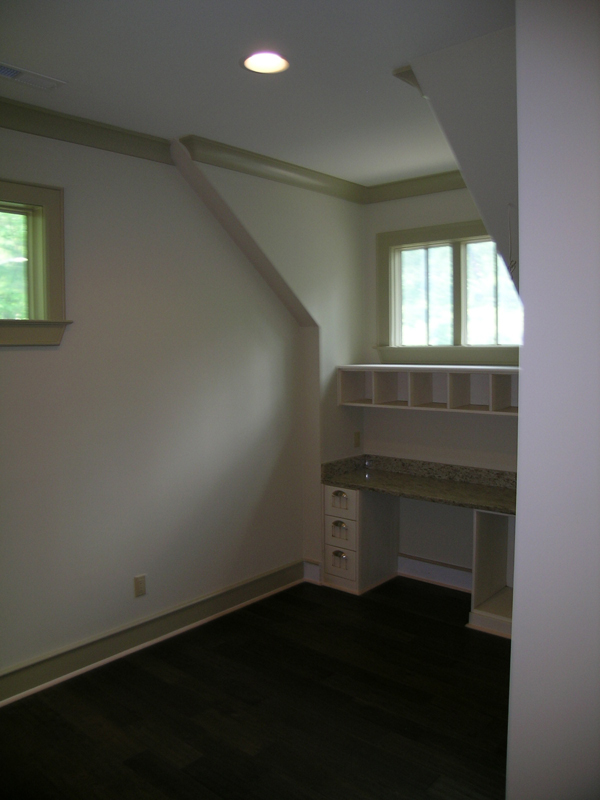

Loft Dormer – westhomeplanners.com

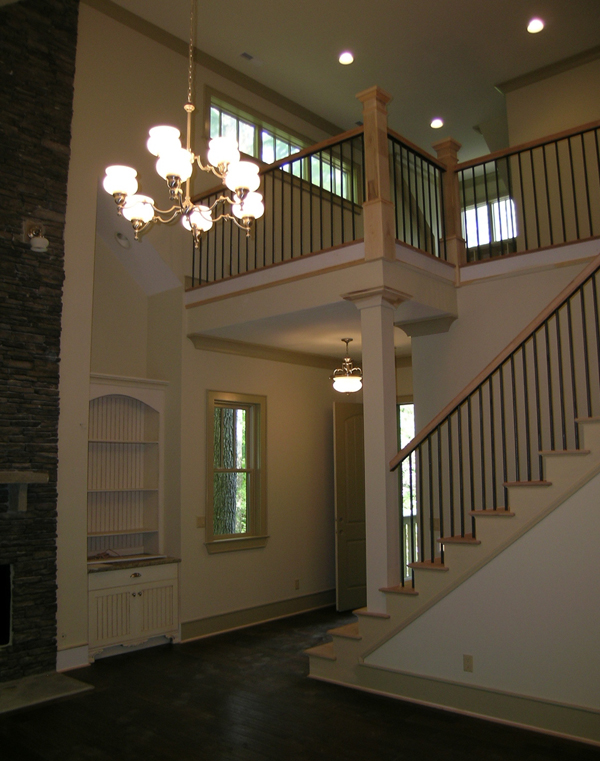

Entry – westhomeplanners.com

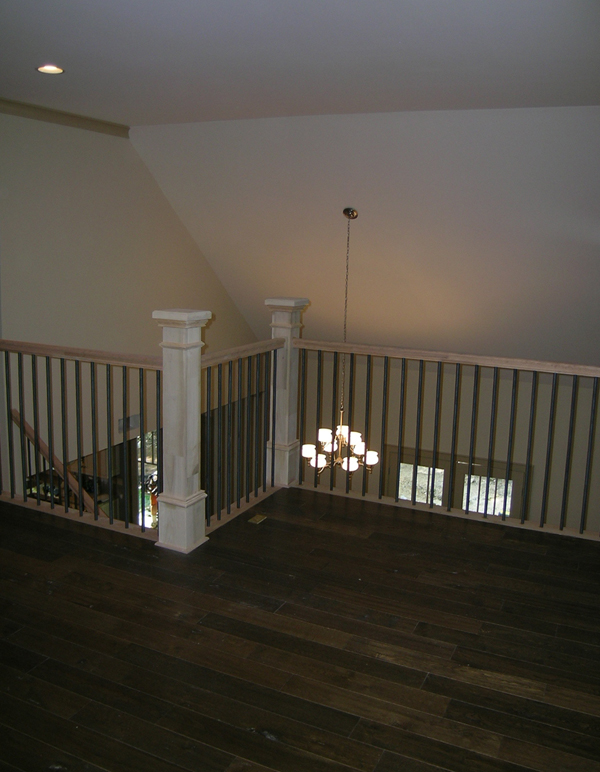

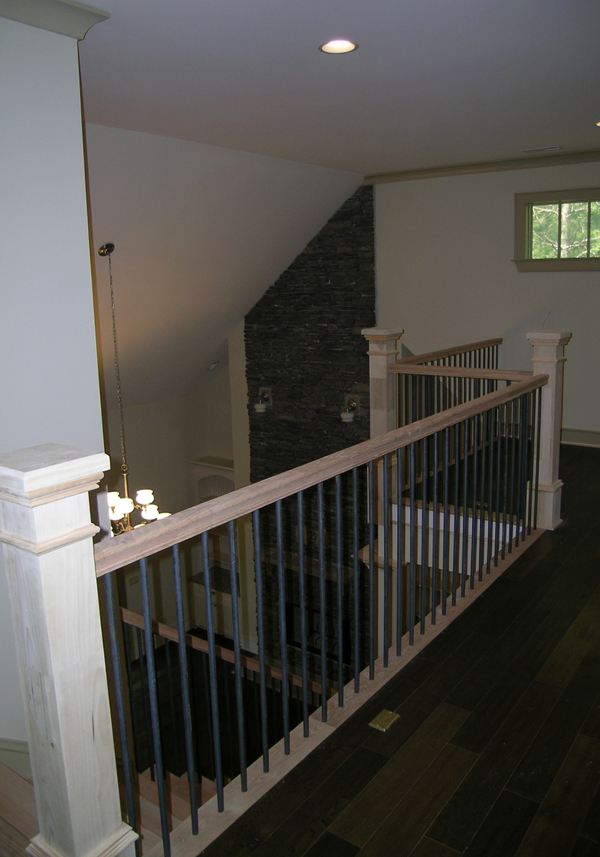

Loft – westhomeplanners.com

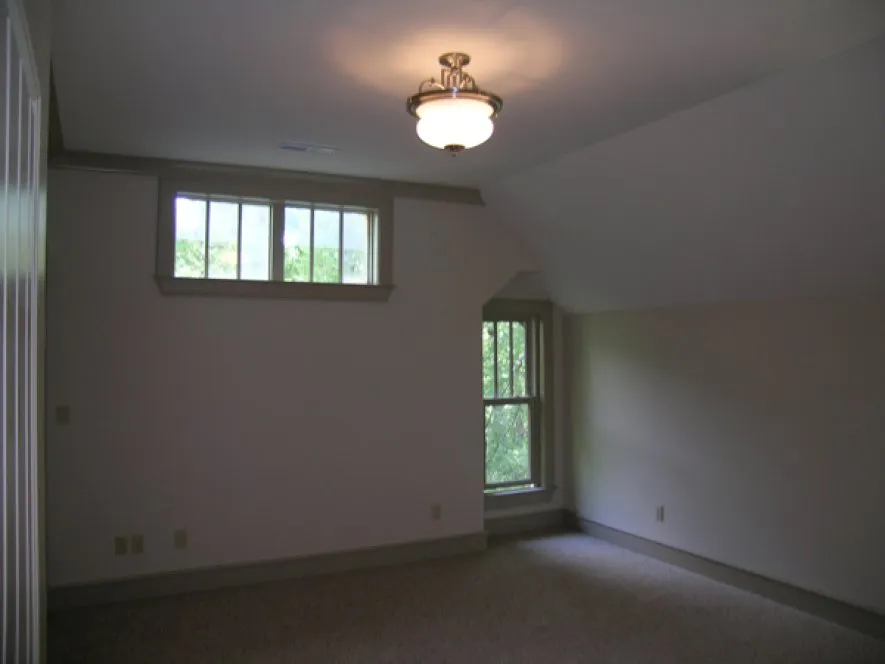

Bedroom 3 – westhomeplanners.com

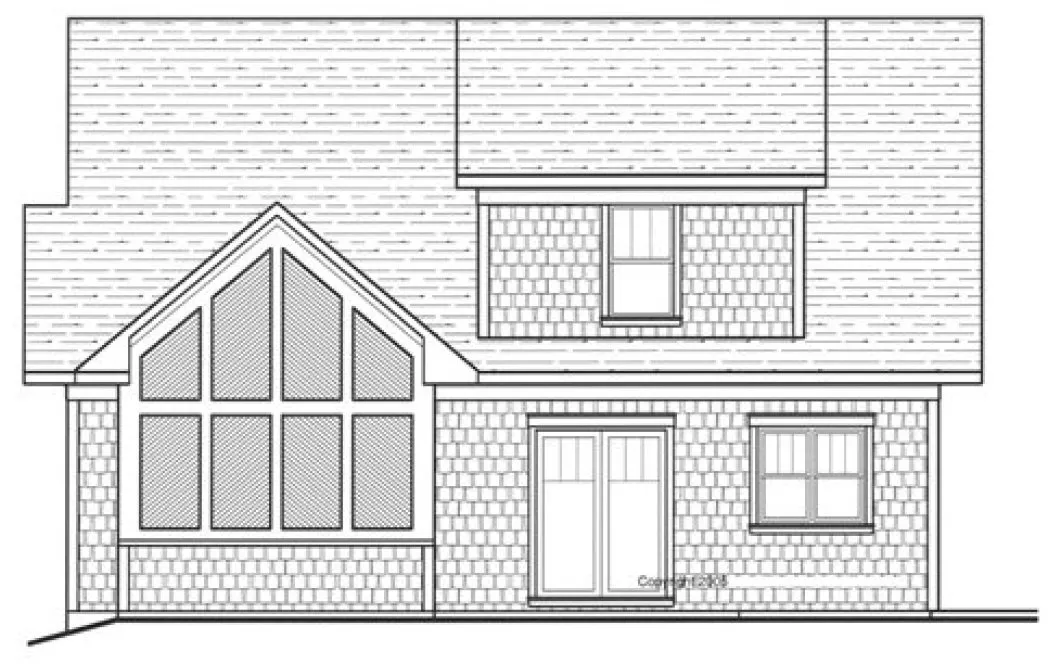

REAR Elevation – westhomeplanners.com

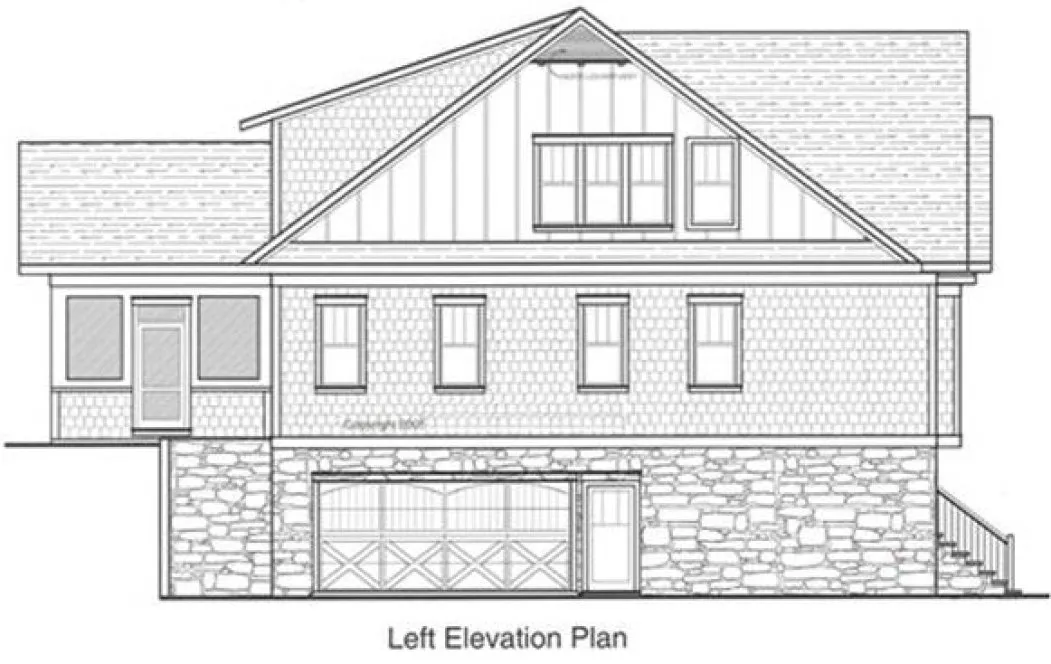

LEFT Elevation – westhomeplanners.com

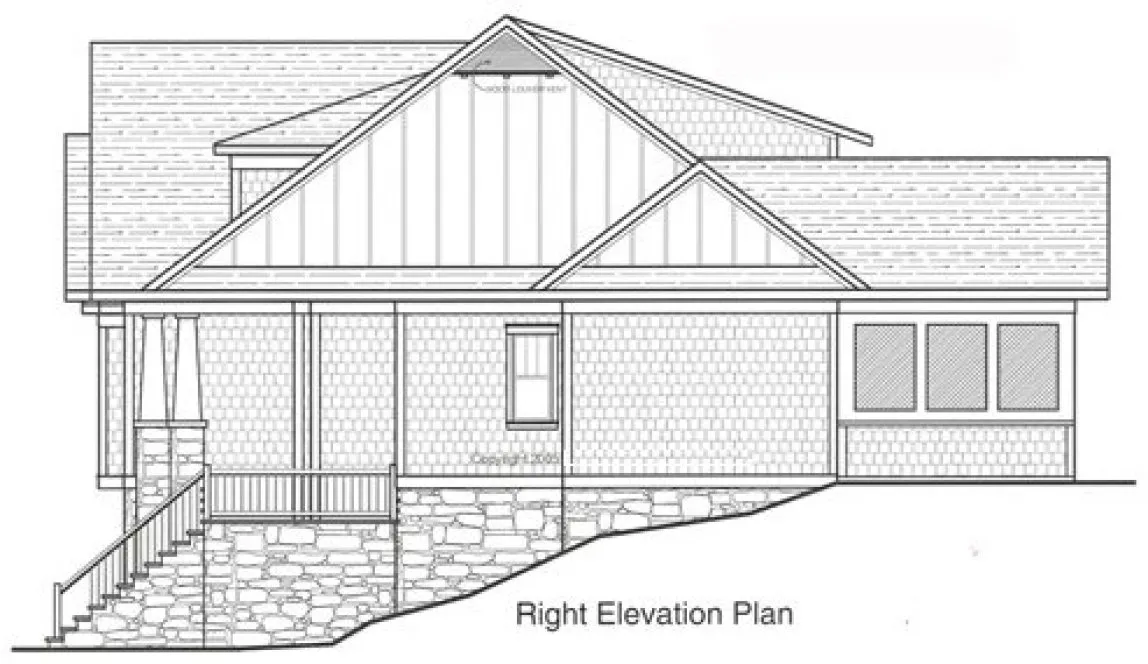

RIGHT Elevation – westhomeplanners.com
