Plan No.272053

Elegant European

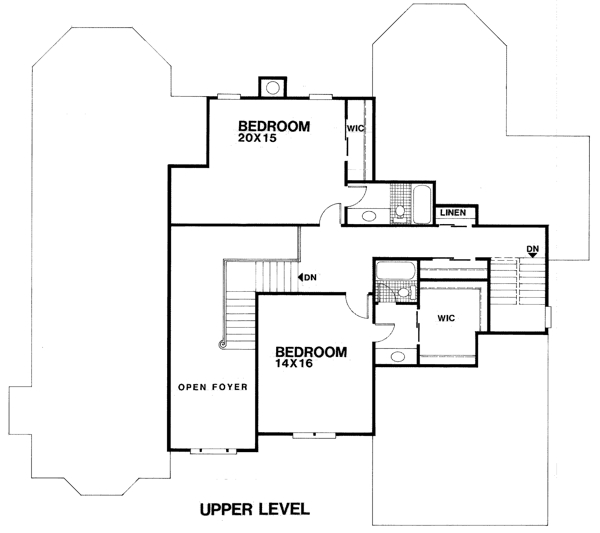

This elegant "European" design features a luxurious master suite with a vaulted ceiling, master bath and walk-in closet on the lower level. The spacious foyer leads to a 16'x14' parlor with a fireplace and a 14'x16' dining room. This design also features a separate 24'x15' living room with a fireplace. Located just off of the living room is a 15'x15' sunroom with vaulted ceiling and and a door leading unto a 24'x14' deck. The gourmet kitchen measuring 14'x17' features an angled work island with cooktop. Completing the lower level is an 11'x14' breakfast room and a laundry room. The upper level features two bedrooms with private baths. One bedroom measures 14'x16' and has a roomy walk-in closet. The remaining bedroom measures 20'x15'. A linen closet and auxiliary closet complete the upper level which is accessible by two separate staircases.


Total 3512 sq ft

  • Main: 2617
  • Second: 895
  • Third:
  • Loft/Bonus:
  • Basement: 2617
  • Garage:


  • Beds: 3
  • Baths: 3
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:


  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 66'0
  • Depth: 59'0


  • Max Ridge Height: 32'0
  • Comments: ()
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering –

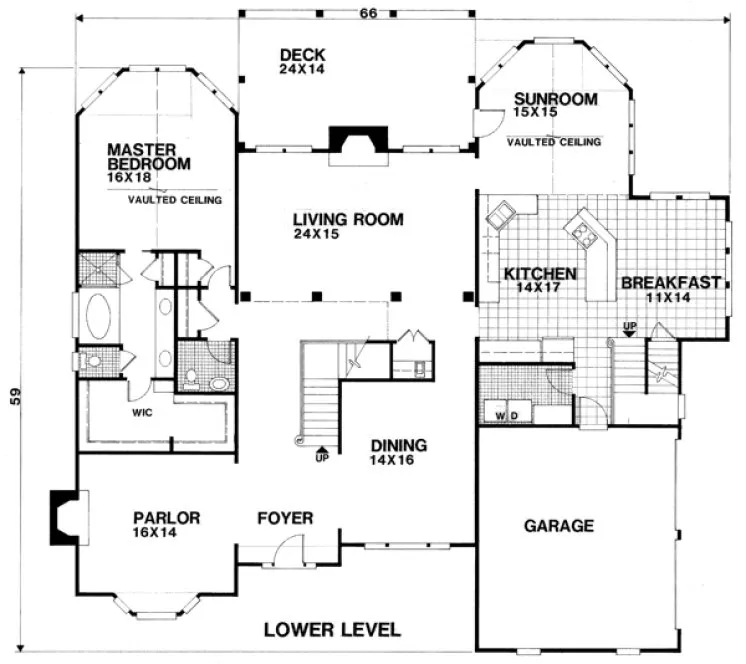

MAIN Plan –
