Plan No.272191

Delightful Victorian

This delightful "Victorian" style home, with it's compact footprint, is the perfect choice for narrow lots. Spacious rooms, a covered porch and the large deck may make this design irresistible. Beyond the front porch is an inviting entry. To the left is the family room featuring a fireplace and double french doors opening onto the porch. Double french doors lead to the dining room while yet another set leads to the enormous deck. The open kitchen includes a 3'x5' island. A 2'-6" french door leads to the deck from the "bayed" breakfast area. Lower level ceiling heights are 9'. Upstairs, are the master suite, two secondary bedrooms and the laundry room. A 9'-6" tray ceiling adorns the master bedroom. Off the master bath is a 9'x7' walk-in closet with mirrored by-pass doors. Bedroom 2 is highlighted by a window seat and bedroom 3 by a bay window. Both provide direct access to the bath. Upper level ceilings heights are 8'. Please note that the foundation is half basement, half crawlspace.

Specifications

Total 1985 sq ft

  • Main: 1009
  • Second: 976
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type:
  • Width: 31'2
  • Depth: 42'0

Roof

  • Max Ridge Height: 30'0
  • Comments: ()
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

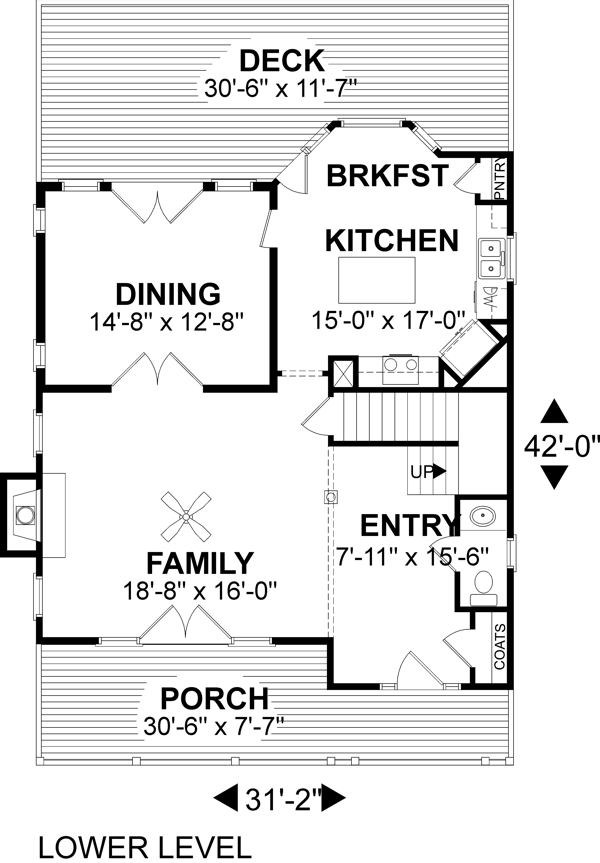

MAIN Plan – westhomeplanners.com

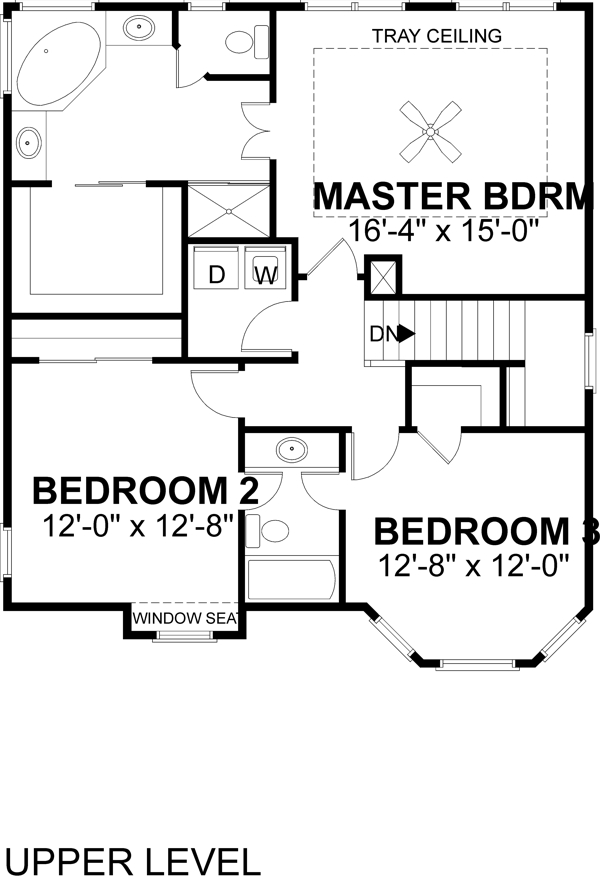

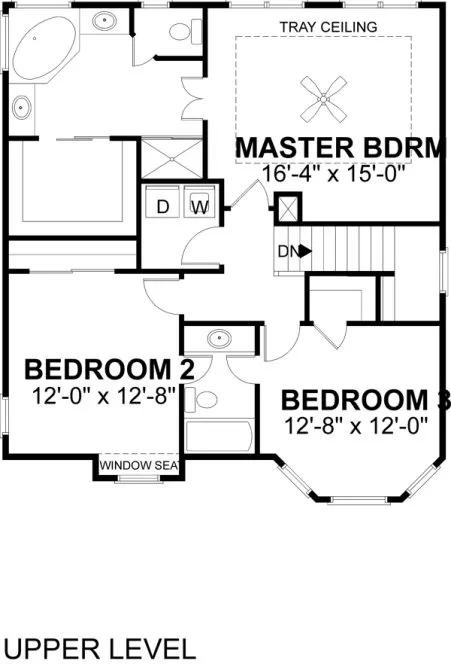

SECOND Plan – westhomeplanners.com

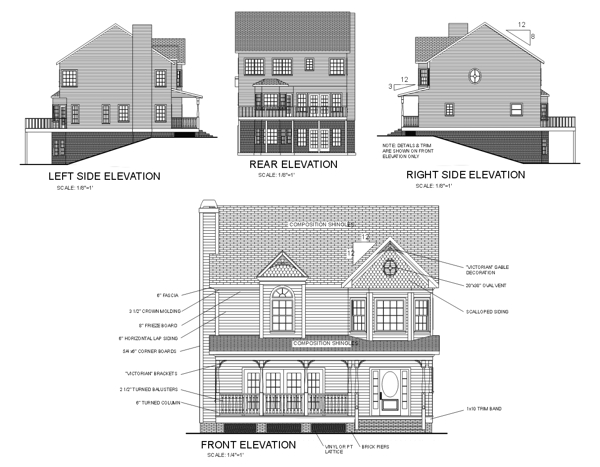

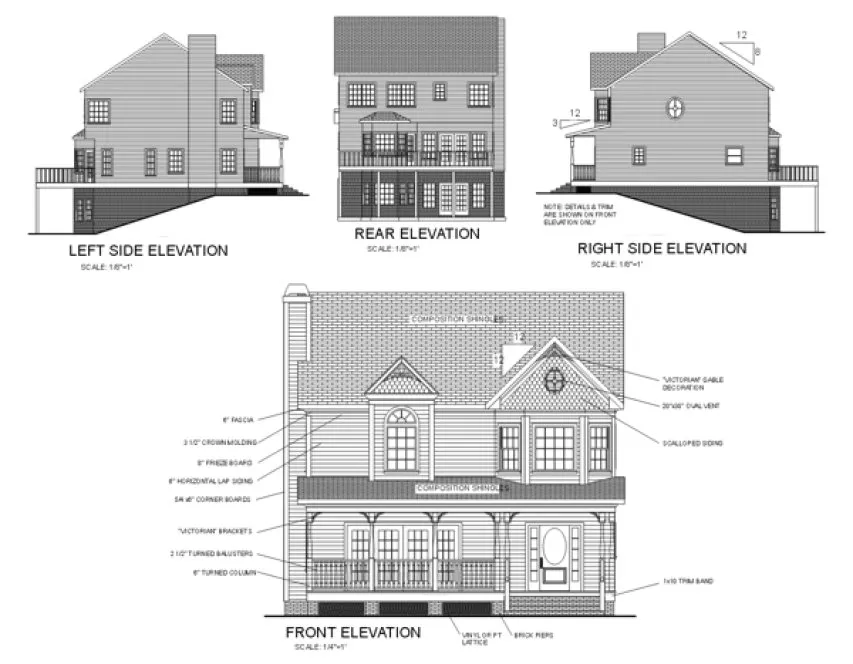

REAR Elevation – westhomeplanners.com
