Plan No.275171

Rustic Ranch

This rustic drive-under ranch is highlighted by an inviting front porch. The unusual layout provides a luxurious master suite with a bedroom nearby, a perfect nursery, and a third bedroom with a private bath. The drive-under garage plan features a screened porch, spacious living areas, and an economical 1728 square foot design. Beyond the front porch is a large entry leading to the 19'x19'8" family room with a corner fireplace and a "window wall" overlooking an enormous deck. The efficient kitchen and dining area are open to the family room. The master bedroom is adorned with a dramatic bath with angled entry and corner tub. The secondary bedrooms each measure 12'x11'. Ceiling heights are 9' throughout.

Specifications

Total 1728 sq ft

  • Main: 1728
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds:
  • Baths:
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 9'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type: doubleGarage
  • Width: 54'0
  • Depth: 32'0

Roof

  • Max Ridge Height: 20'0
  • Comments: ()
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

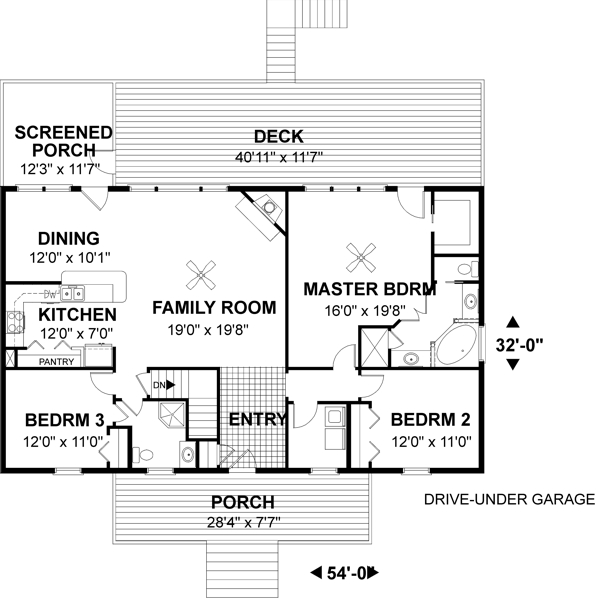

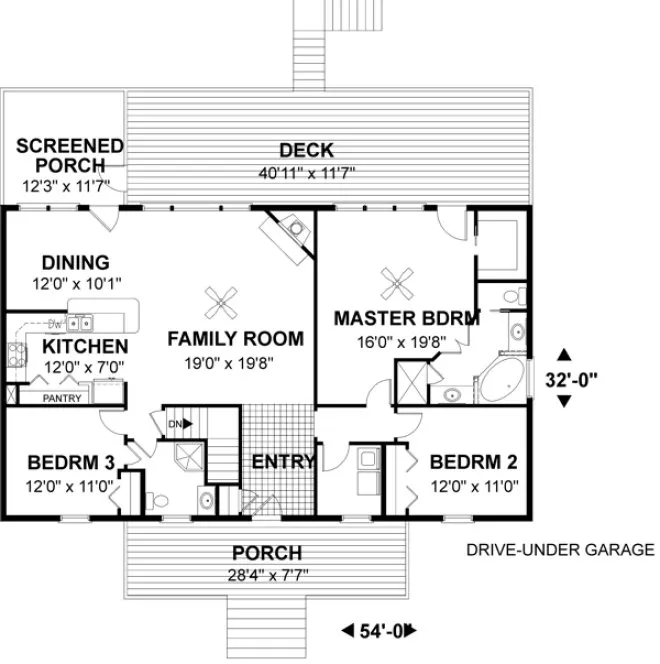

MAIN Plan – westhomeplanners.com

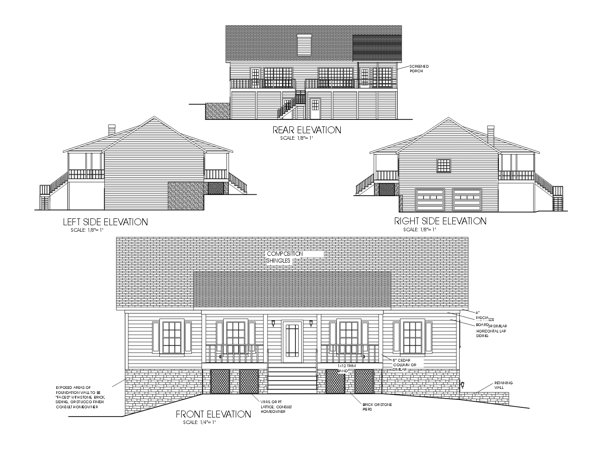

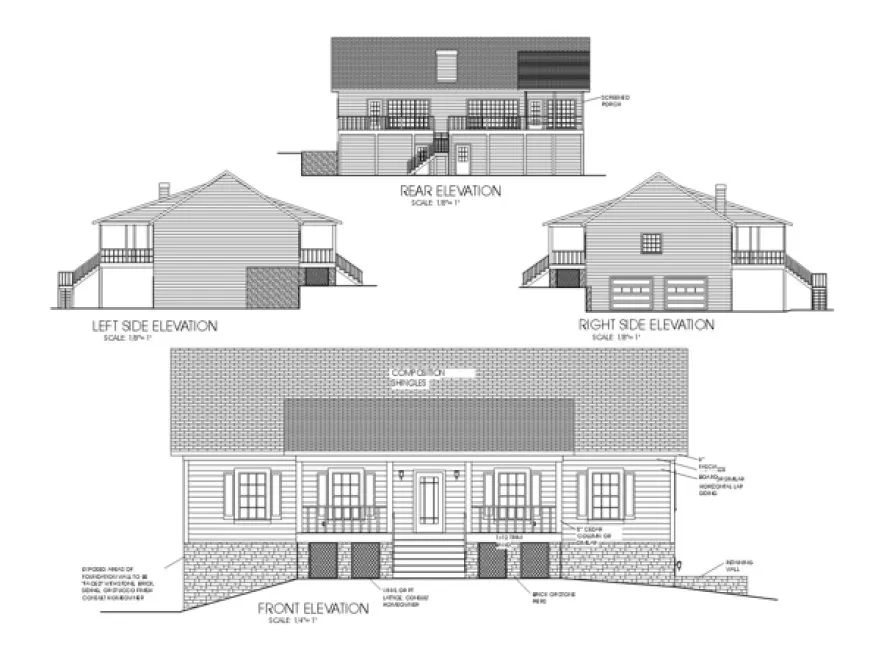

REAR Elevation – westhomeplanners.com
