Plan No.215280

Cost-effective Duplex

A full-featured duplex plan that is both simple and cost-effective to build. This plan provides an excellent value in space planning, and includes several key features that help to minimize the overall cost-to-build, including the shape of the building, hip roof, and 8 ft. ceiling heights. Other unique features of this home design include: highly-effective use of space for 825 square feet (2 bedrooms, 2 baths); large master suite with full bath and walk-in closet, plenty of built-ins, patio for grilling, covered front porch, and great street appeal. A winner for both builders and owners!

Specifications

Total 1650 sq ft

  • Main: 1650
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0"
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type:
  • Width: 60'0"
  • Depth: 33'6"

Roof

  • Max Ridge Height: 18'9"
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

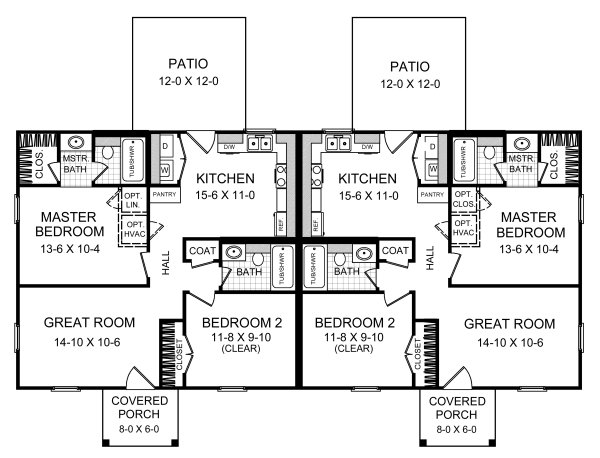

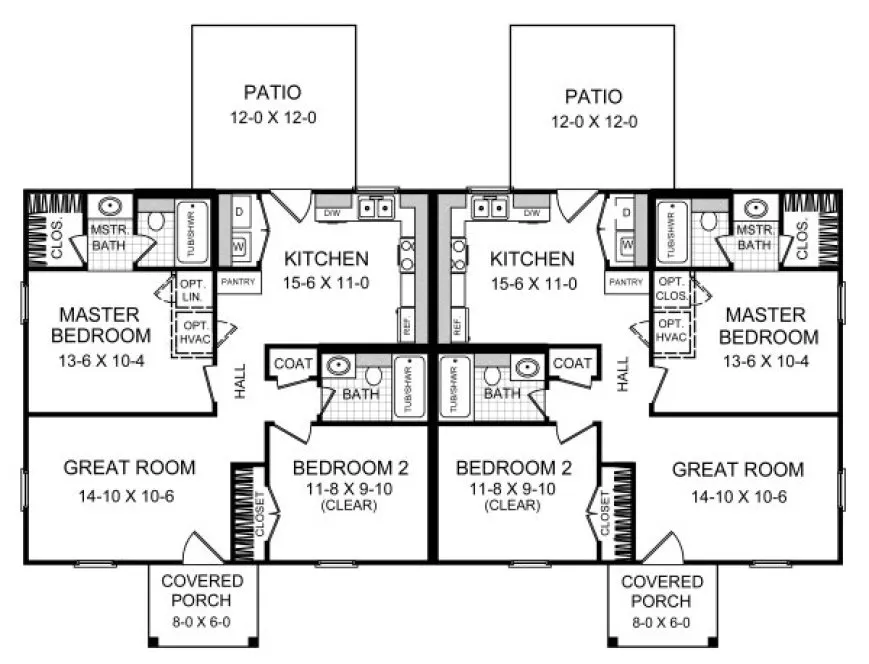

MAIN Plan – westhomeplanners.com

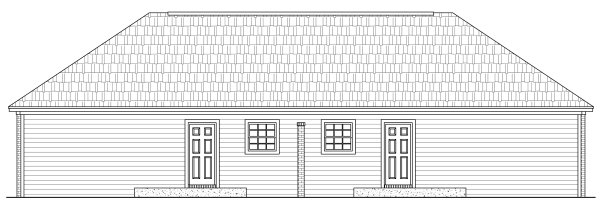

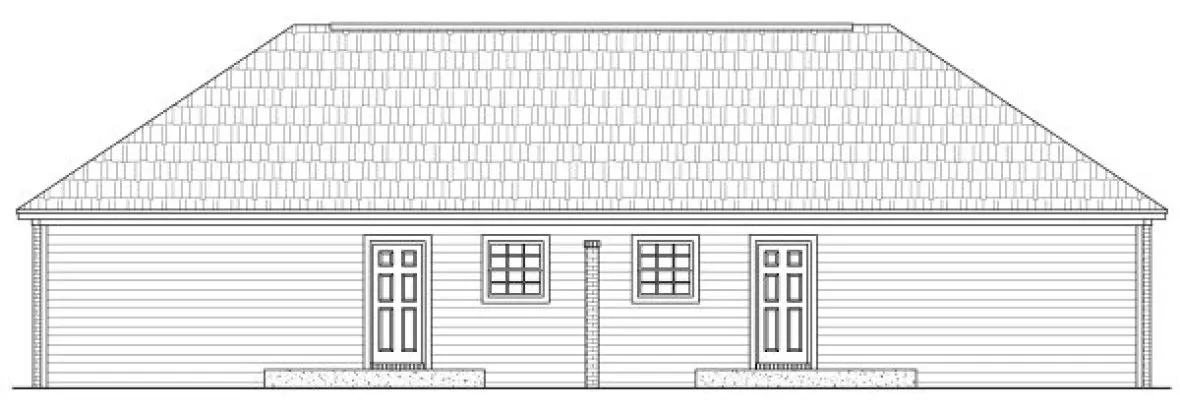

REAR Elevation – westhomeplanners.com
