Plan No.214631

Easy-to-construct Duplex

This spacious three bedroom duplex offers many great features, in an easy-to-construct package. Large bedrooms and closets. Expansive living and dining room areas for those family and friend "get-togethers". Enjoy the covered porches on both front and rear of house for those weekend cookouts. Split bedroom and open floorplan layout. Great value!

Specifications

Total 2728 sq ft

  • Main: 2728
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0"
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x4
  • Garage Type:
  • Width: 80'0"
  • Depth: 41'0"

Roof

  • Max Ridge Height: 21'0"
  • Comments: ()
  • Primary Pitch: 8.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

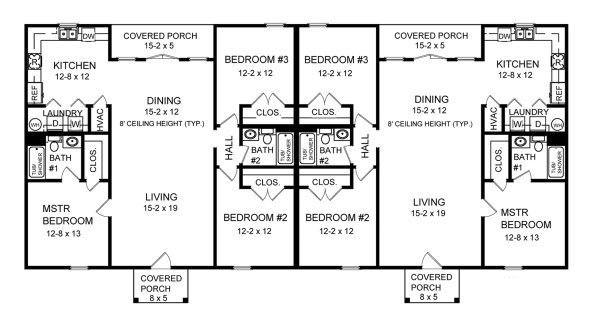

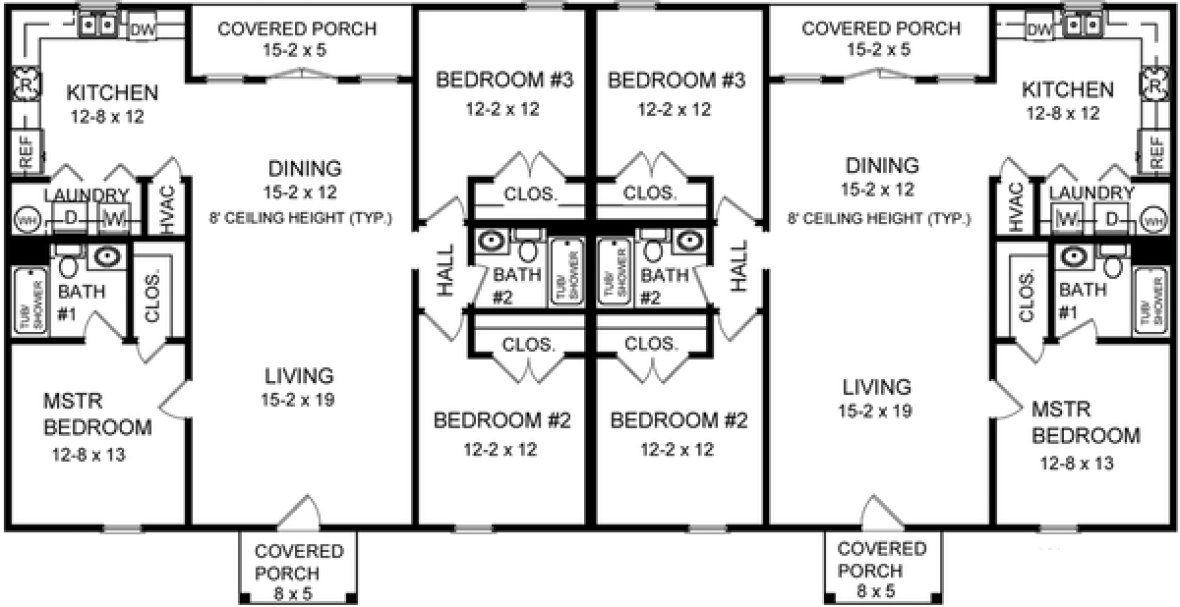

MAIN Plan – westhomeplanners.com

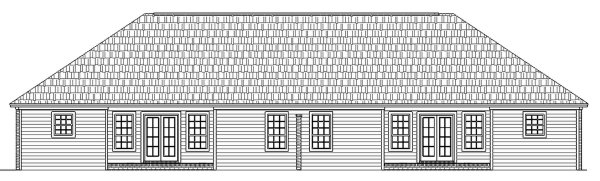

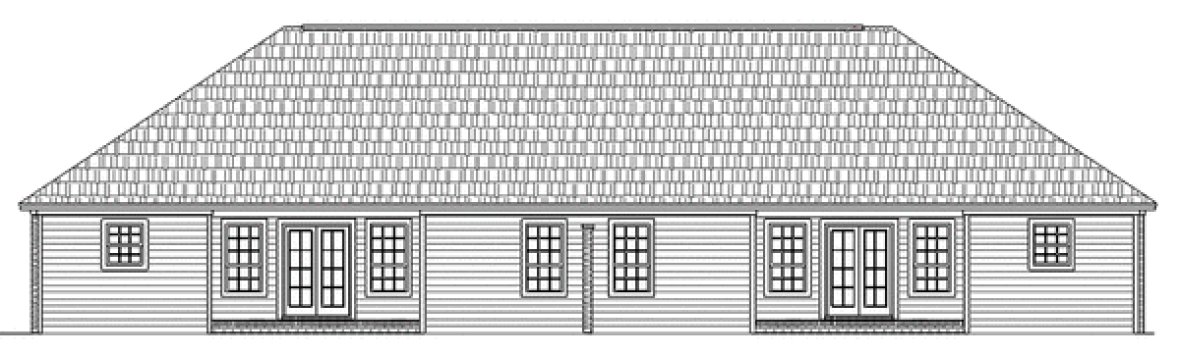

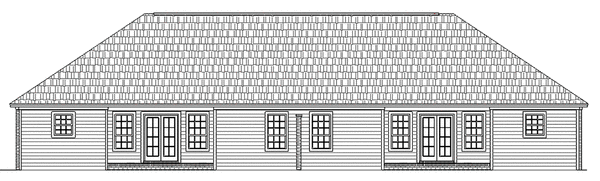

REAR Elevation – westhomeplanners.com
