Plan No.133349

Practical Duplex

Timeless exterior is featured on this practical two-story duplex. Private entries are achieved by the creative placement of the attached garages. Convenient u-shaped kitchen flows into the breakfast nook which features glass doors to the private rear patio. Three bedrooms and two full bathrooms complete the upper floor. Main Floor - 693 Sq. Ft. (per unit) Upper Floor - 594 Sq. Ft. (per unit) Total - 1287 Sq. Ft. (per unit)

Specifications

Total 2574 sq ft

  • Main: 1386
  • Second: 1188
  • Third:
  • Loft/Bonus:
  • Basement: 1386
  • Garage: 220

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0"
  • Second: 8'0"
  • Third:
  • Loft/Bonus:
  • Basement: 8'0"
  • Garage: 9'4"

Details

  • Exterior Walls: 2x6
  • Garage Type: singleGarage
  • Width: 48'0"
  • Depth: 47'6"

Roof

  • Max Ridge Height: 24'0"
  • Comments: ()
  • Primary Pitch: 6.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

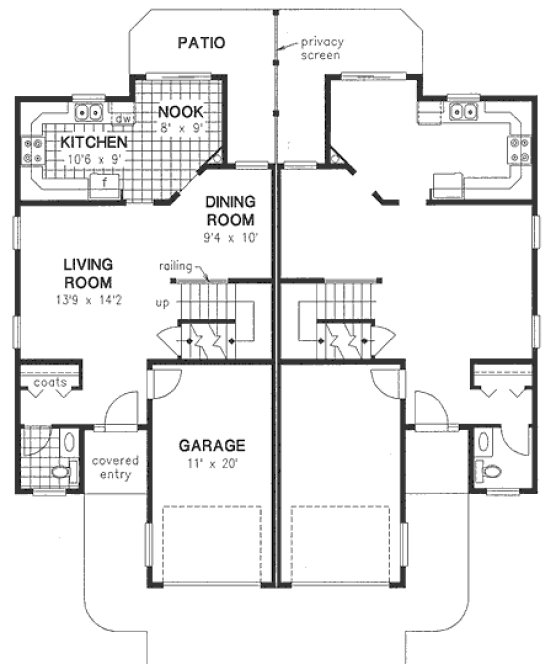

MAIN Plan – westhomeplanners.com

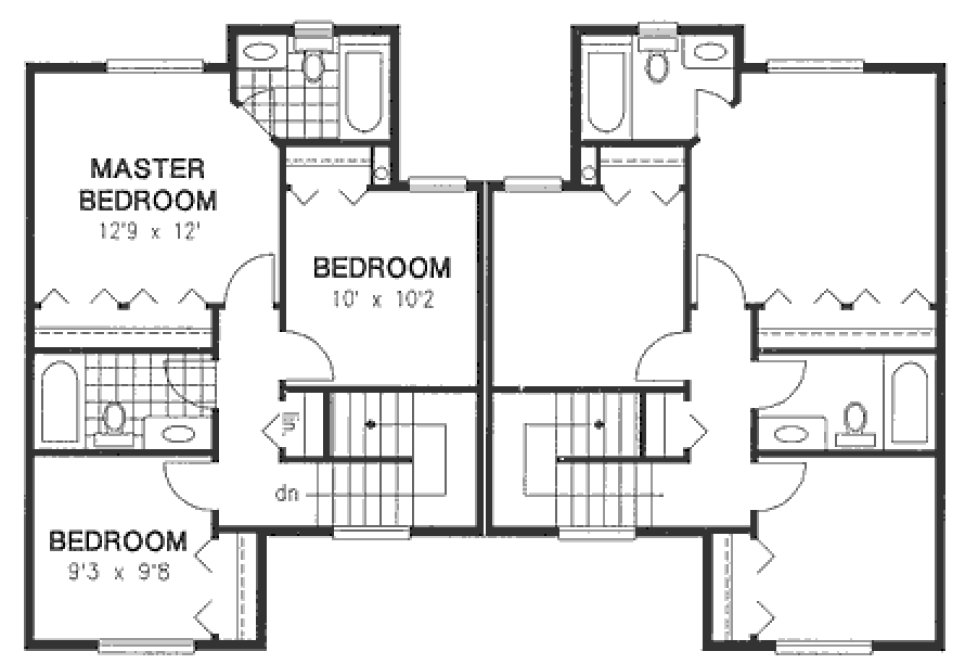

SECOND Plan – westhomeplanners.com

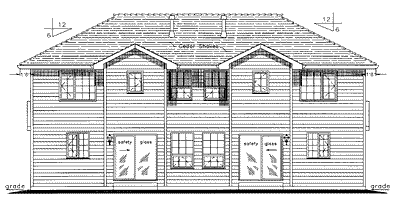

REAR Elevation – westhomeplanners.com
