Plan No.130249

Elegant Duplex

Elegant side-entry duplex. Angled living room adds interest. Efficient u-shaped kitchen opens into the roomy breakfast room with glass doors to the rear patio. Handy main floor laundry room. Master bedroom features a private covered deck, walk-in closet and private bath. Main Floor - 766 Sq. Ft. (per unit) Upper Floor - 693 Sq. Ft. (per unit) Total - 1459 Sq. Ft. (per unit)

Specifications

Total 2918 sq ft

  • Main: 1532
  • Second: 1386
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 241

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 1
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0"
  • Second: 8'0"
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage: 9'4"

Details

  • Exterior Walls: 2x6
  • Garage Type: singleGarage
  • Width: 48'6"
  • Depth: 48'0"

Roof

  • Max Ridge Height: 24'6"
  • Primary Pitch: 6.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

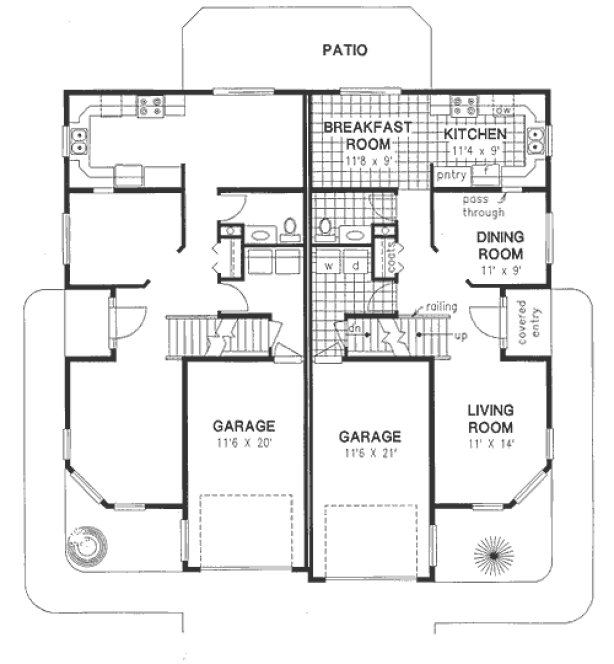

MAIN Plan – westhomeplanners.com

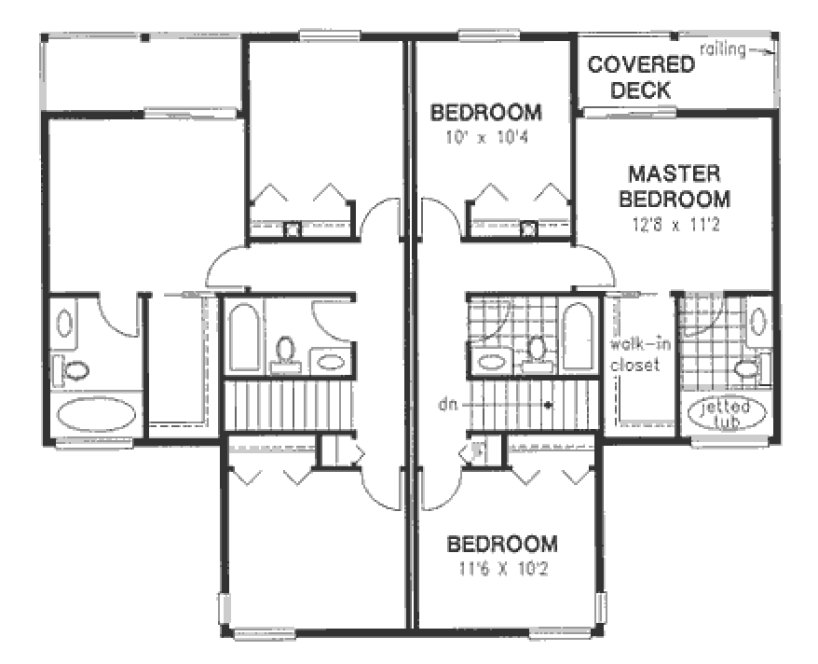

SECOND Plan – westhomeplanners.com

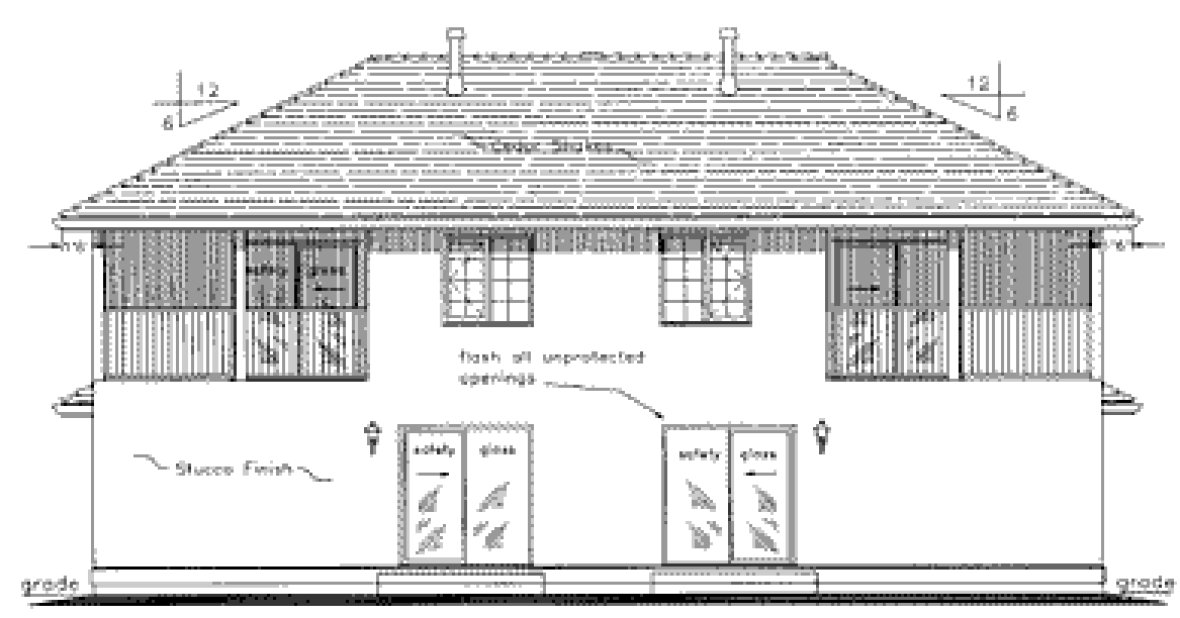

REAR Elevation – westhomeplanners.com
