Plan No.133509

Spacious and Functional

Living room, warmed by a fireplace, views the railed staircase and foyer below. Dining room features glass sliding doors to the roomy covered deck. Functional kitchen, with breakfast nook, offers outside access. Master bedroom is complete with a three piece bath. Lower level may be finished at a later date to reduce building costs.

Specifications

Total 1400 sq ft Rooms Ceiling Height Details Footprint
Main: 1400   Bedrooms: 3   Main: 8'0"   Max. Ridge Height: 17'10" ()   Width: 60'0"
Second:   Baths: 2   Second:   Primary Roof Pitch: 4.00/12   Depth: 29'6"
Third:   Half-baths:   Loft/Bonus Rm:   Secondary Roof Pitch: /12
Basement: 1400   3/4 Baths:   Basement: 8'0"   Exterior Wall: 2x6
Loft/Bonus:

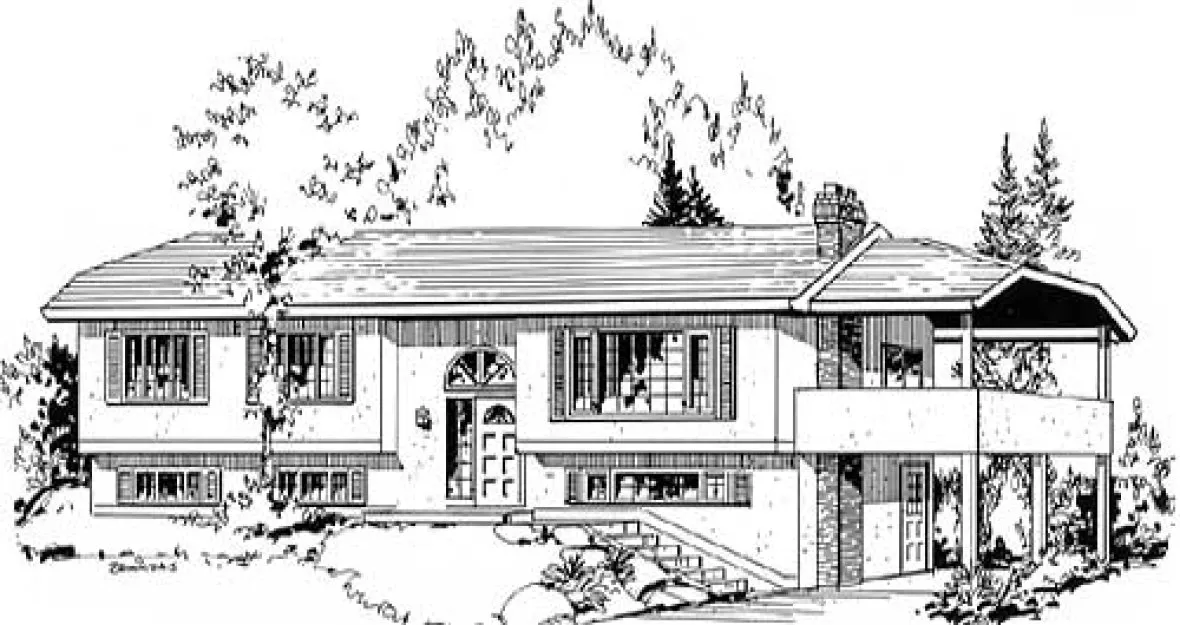

  Full Rendering

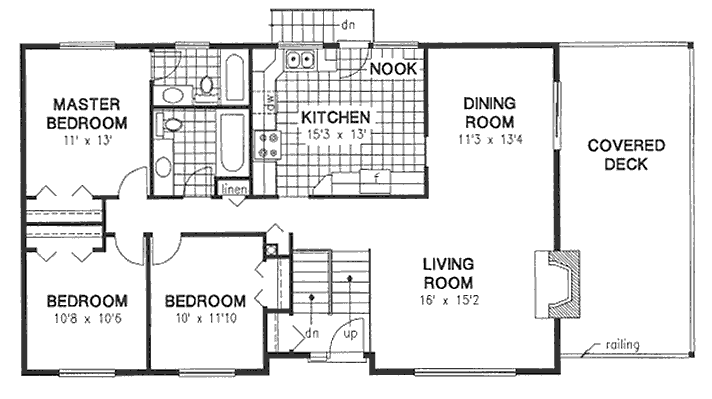

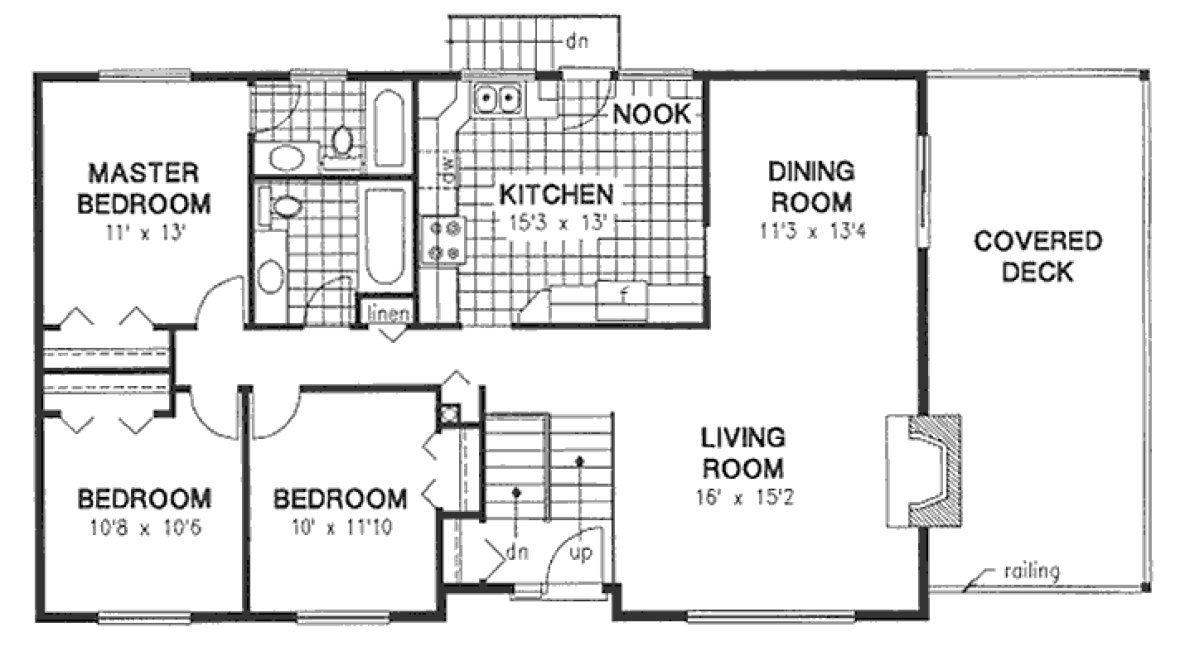

  MAIN Plan

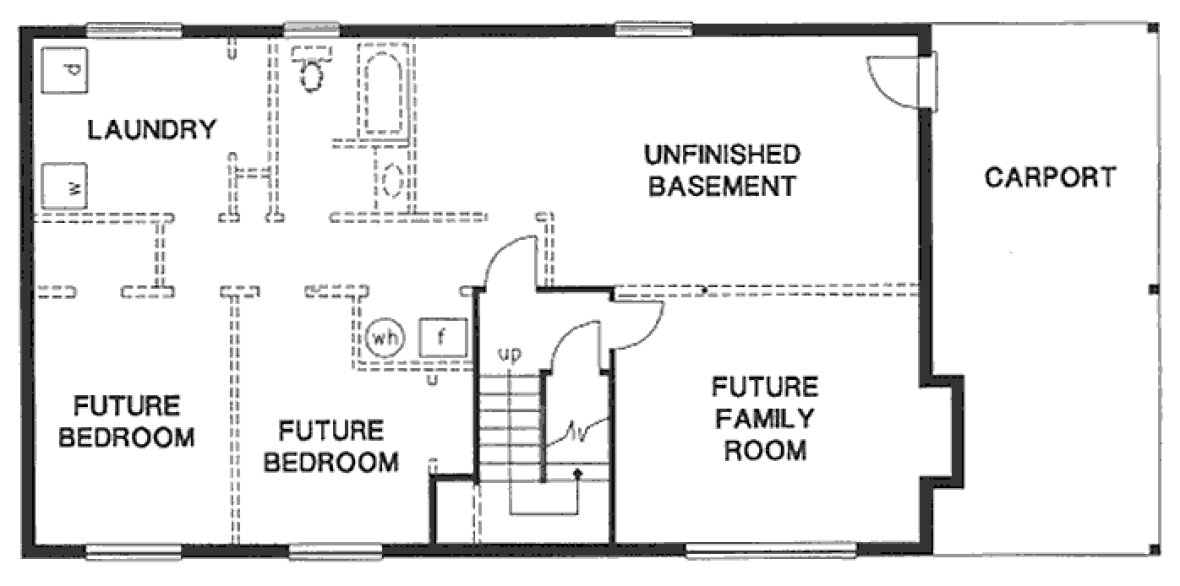

  BASEMENT Plan

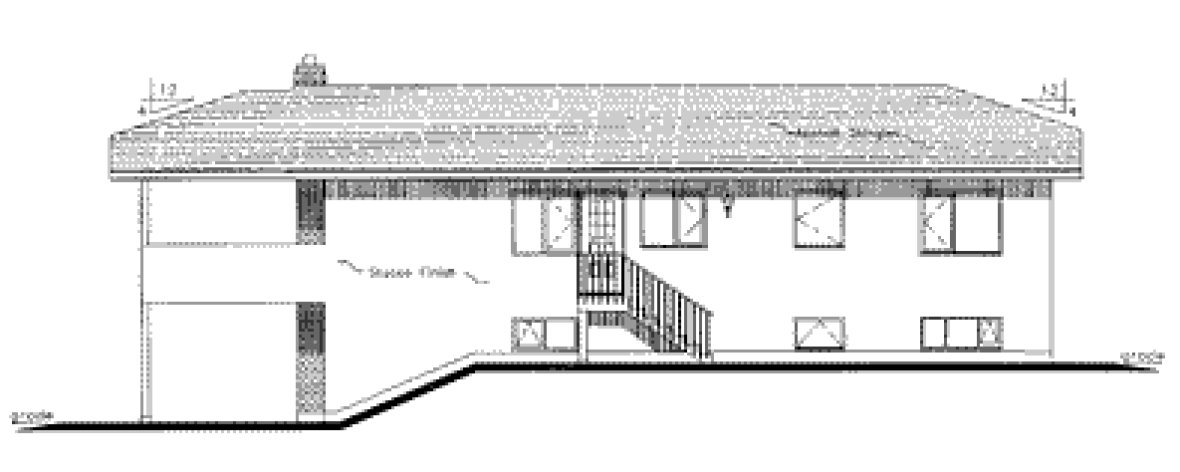

  REAR Elevation
