Plan No.102016

Dormers A Plus For Master Bedroom And Roofline

The large living area has a vaulted ceiling and great view to the front of the house. A full laundry room, full bath, and large bedroom complete the main floor. This large a-frame looks great thanks to the interesting roof line formed by dormers in the loft bedroom. THE MATERIALS LIST IS ONLY AVAILABLE FOR THE CRAWLSPACE FOUNDATION

Specifications

Total 1677 sq ft

  • Main: 1064
  • Second:
  • Third:
  • Loft/Bonus: 613
  • Basement:
  • Garage:

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath:
  • 3/4 Bath:

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus: 8'0
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 28'0
  • Depth: 40'0

Roof

  • Max Ridge Height: 26'6
  • Comments: ()
  • Primary Pitch: 12.00/12
  • Secondary Pitch: /12
Full Rendering – westhomeplanners.com

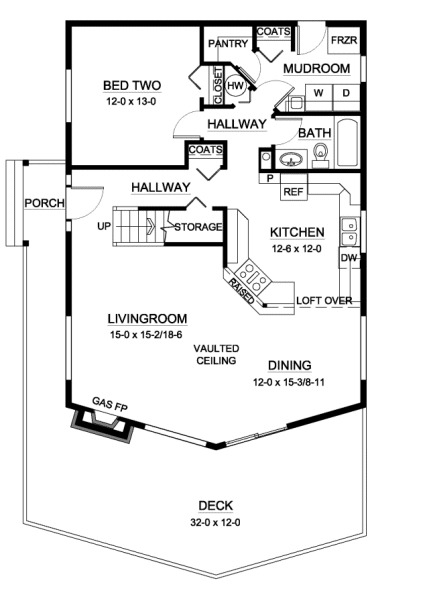

MAIN Plan – westhomeplanners.com

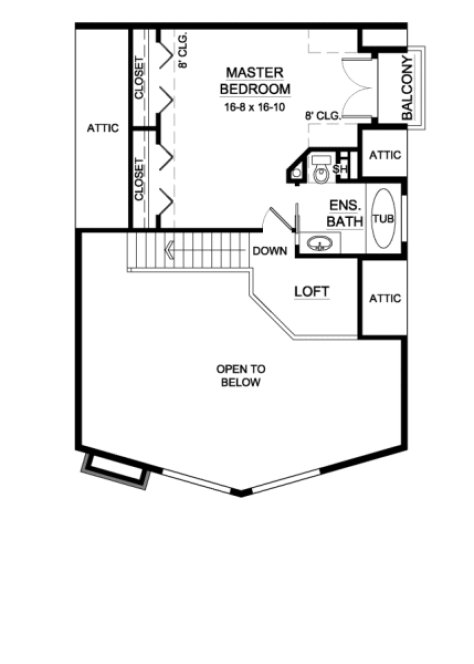

ATTIC Plan – westhomeplanners.com
FRONT Rendering – westhomeplanners.com

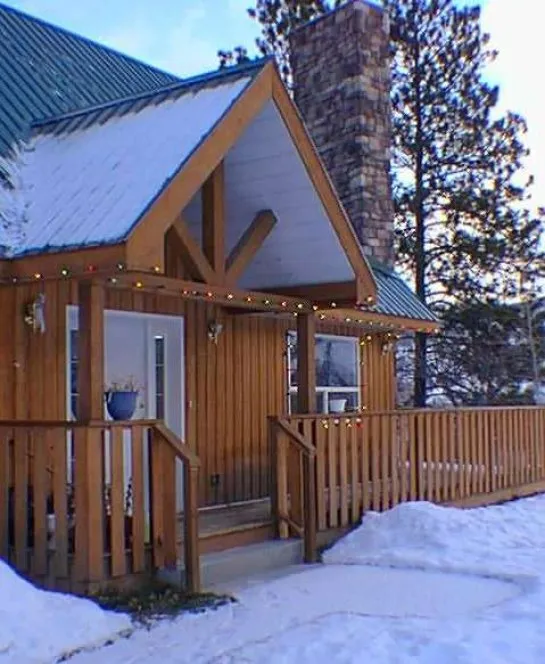

Entry Porch – westhomeplanners.com

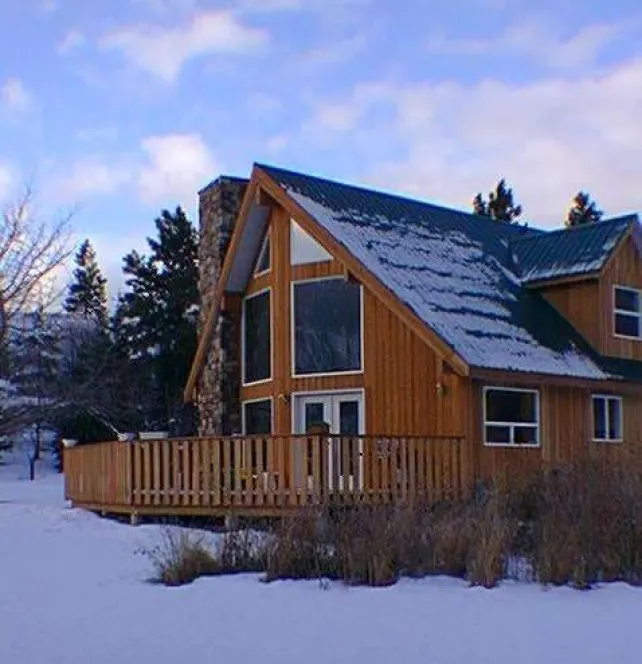

Front – westhomeplanners.com
REAR Elevation – westhomeplanners.com

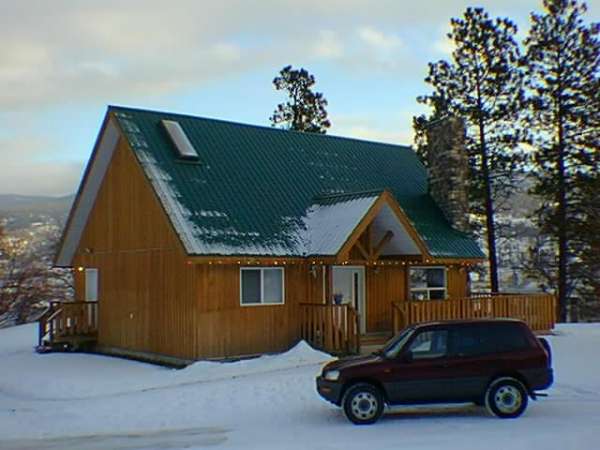

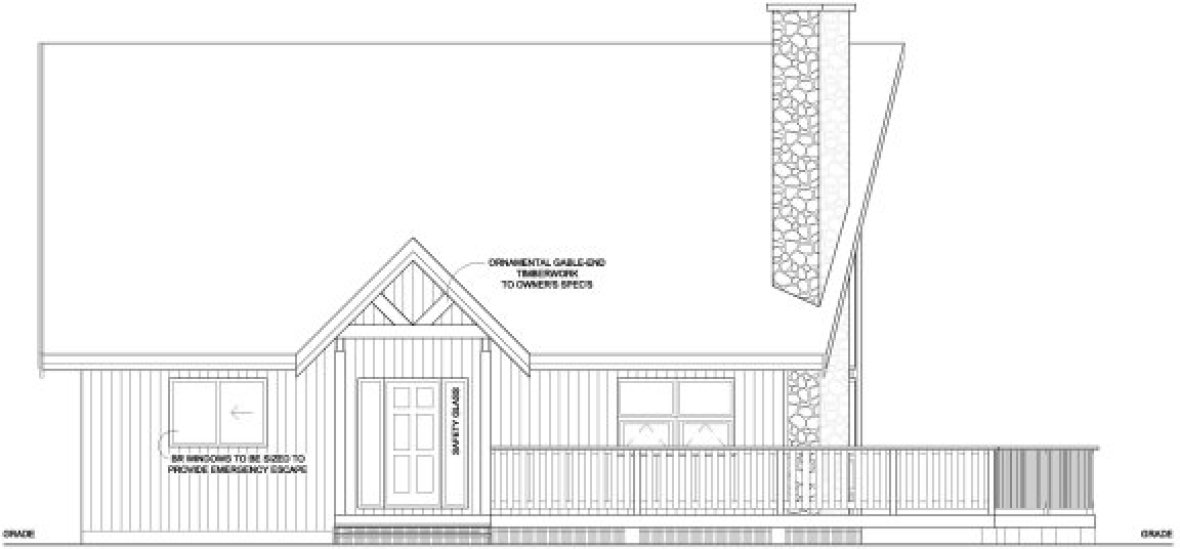

LEFT Elevation – westhomeplanners.com
LEFT Elevation – westhomeplanners.com

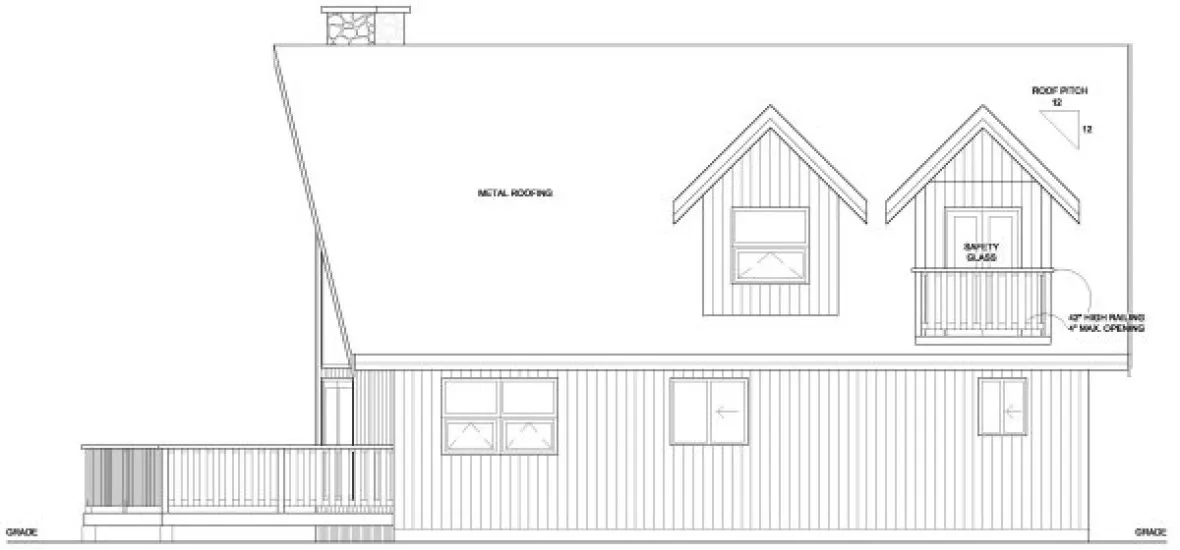

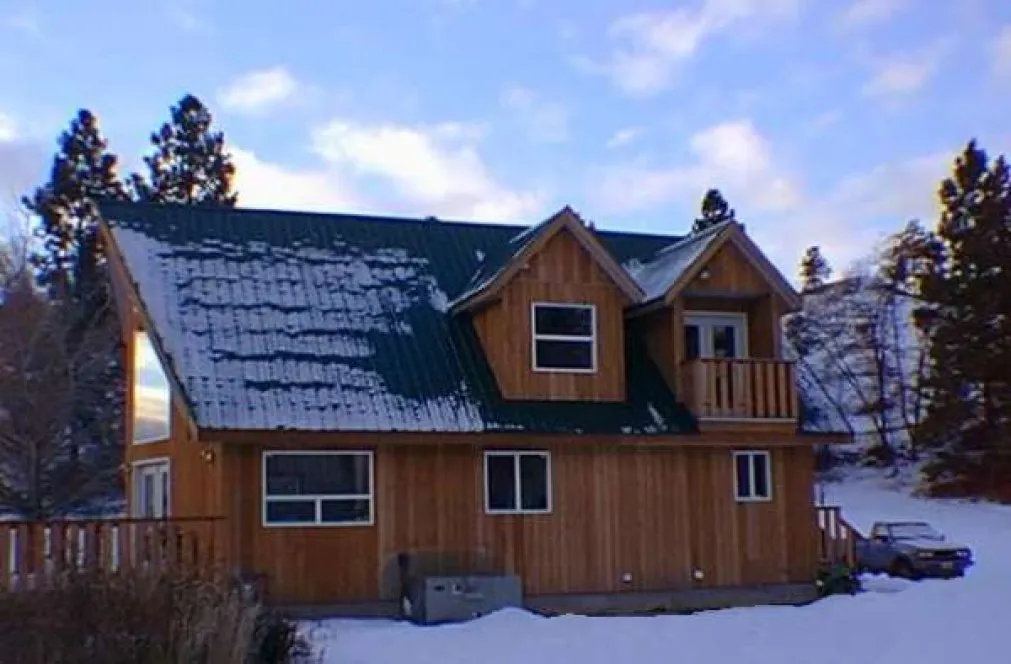

RIGHT Elevation – westhomeplanners.com
RIGHT Elevation – westhomeplanners.com
