Plan No.207011

Charming Little A-Frame

Nothing was missed when this charming little A-frame was designed. At the rear entrance...there are a washer and dryer, and large closets for coats and skis. A very roomy family area at the front features an island kitchen and a spectacular vaulted ceiling. Access to a spacious deck is made easy via french doors in the dining room. The open staircase leads you up to the Master Suite and a roomy loft which is open to the living area below. This design measures 24'0 to 35'0 wide x 32'0 deep not including the decks. See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.

Specifications

Total 1378 sq ft

  • Main: 911
  • Second: 467
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 2
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second: 8'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 39'0
  • Depth: 40'0

Roof

  • Max Ridge Height: 22'4
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 12/12
  • Secondary Pitch: 4/12
Full Rendering – westhomeplanners.com

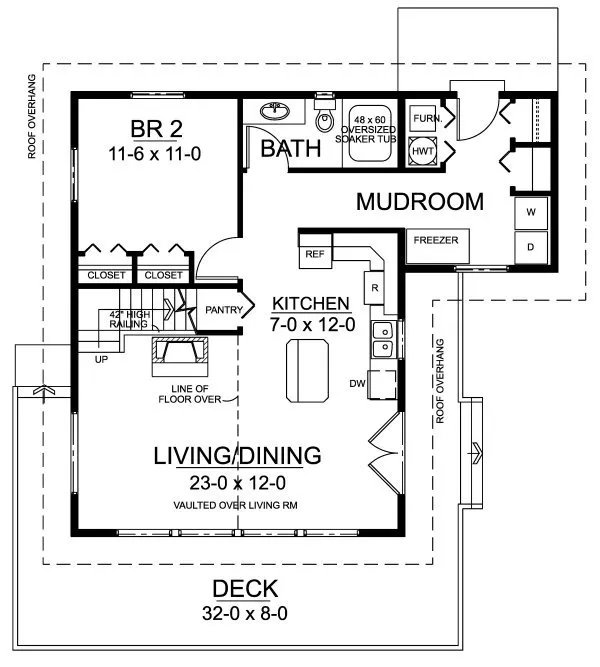

MAIN Plan – westhomeplanners.com
SECOND Plan – westhomeplanners.com
Opt. Walkout Basement – westhomeplanners.com

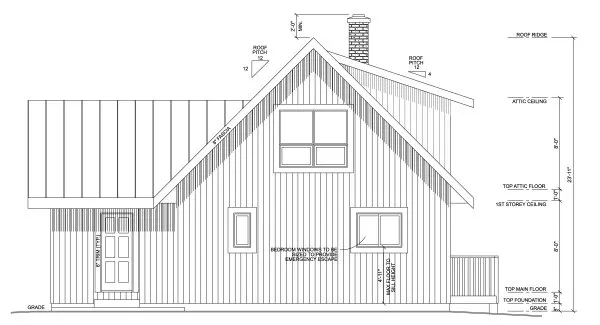

REAR Elevation – westhomeplanners.com
