Plan No.662952

Luxury Beach Home

This modern beach home is styled after the luxury beach homes of the Caribbean coast. The interior of the home faces the pool courtyard which is filled with the sound of the waterfall wall. Living and dining are divided by a textured glass wall, and open to the pool with folding doors by Nanawall. The upper floor houses 4 bedrooms, laundry room and sitting area. Stairs lead to the sundeck and hot tub above the garage. This plan is designed with a concrete slab on grade. The exterior walls are 2×6 wood framing with R19 spray foam insulation. First and second floor systems are pre-engineered wood trusses. The roof is standing seam metal, a plywood deck, and pre-engineered wood trusses. The exterior is finished with sand finish stucco over a waterproof barrier and wall sheathing. Optional exterior wall construction of concrete block or ICF is available.   

Specifications

Total 2592 sq ft

  • Main: 1285
  • Second: 1307
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 4
  • Baths: 2
  • 1/2 Bath: 2
  • 3/4 Bath: 0

Ceiling Height

  • Main: 9'0
  • Second: 9'0
  • Third:
  • Loft/Bonus:
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type: doubleGarage
  • Width: 44'0
  • Depth: 66'0

Roof

  • Max Ridge Height: 27'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 0/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

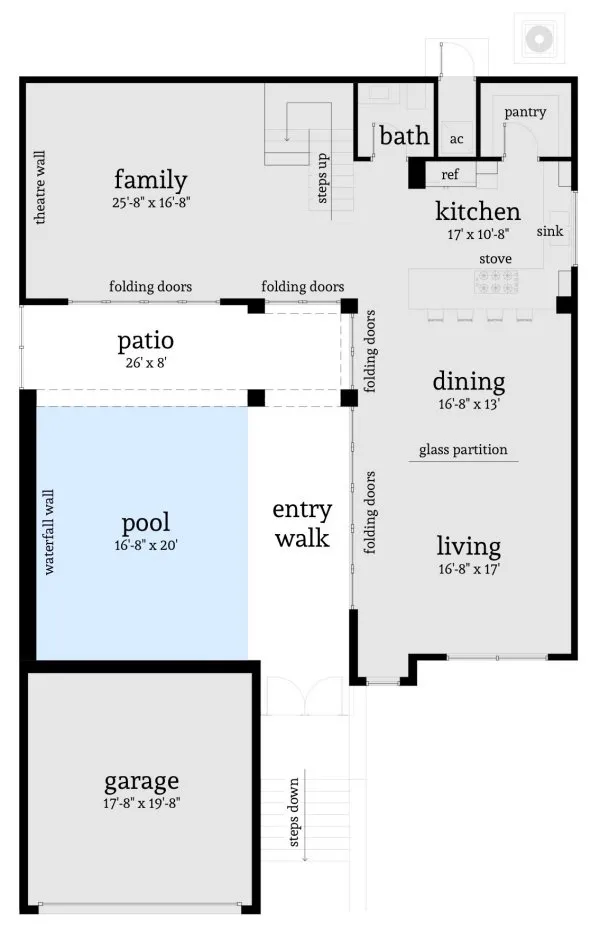

MAIN Plan – westhomeplanners.com

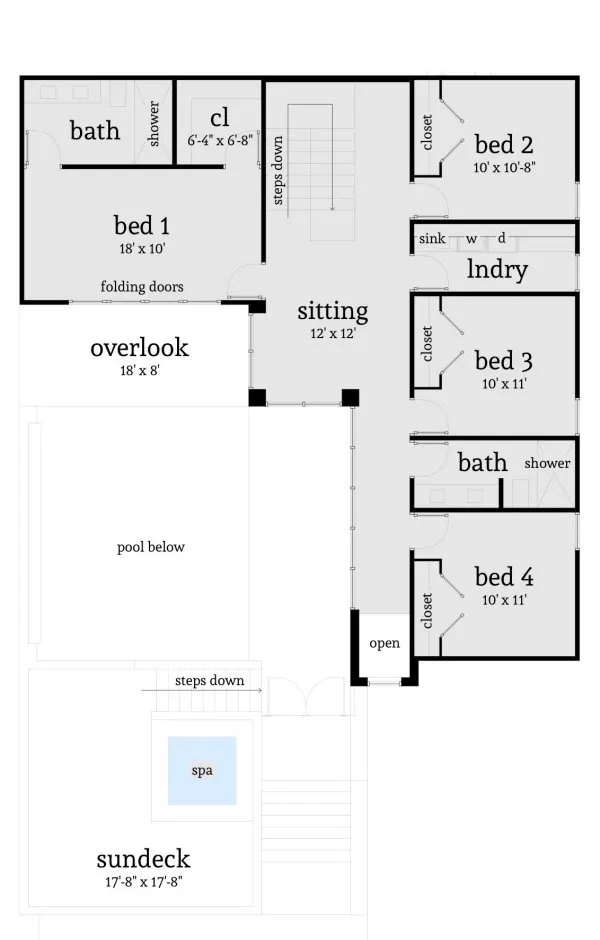

SECOND Plan – westhomeplanners.com
Courtyard Pool – westhomeplanners.com
Sundeck – westhomeplanners.com
LEFT Elevation – westhomeplanners.com
RIGHT Elevation – westhomeplanners.com
