Plan No.510923

Affordable Chalet Design

This affordable chalet design has additional space for future expansion. The unfinished lower level, with fireplace and rough-in plumbing, provides 986 square feet for a family room, bedrooms, or whatever your family needs. The entry steps up to a living room with balcony and fireplace and back to the dining area and U-shaped kitchen. Sliding glass doors in the dining room open to the rear deck. Three bedrooms sit on the left side of the plan and include a master bedroom with private bath and two family bedrooms sharing a full bath.

Specifications

Total 1102 sq ft

  • Main: 1102
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 1050
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 42'0
  • Depth: 28'0

Roof

  • Max Ridge Height: 27'0
  • Comments: (Foyer Level to Peak)
  • Primary Pitch: 5/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

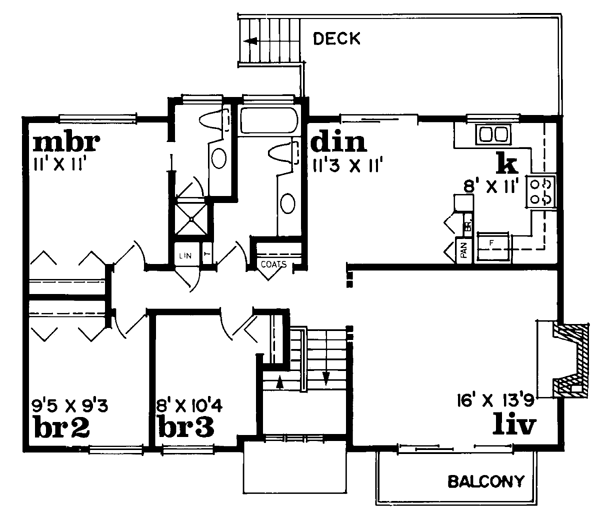

MAIN Plan – westhomeplanners.com

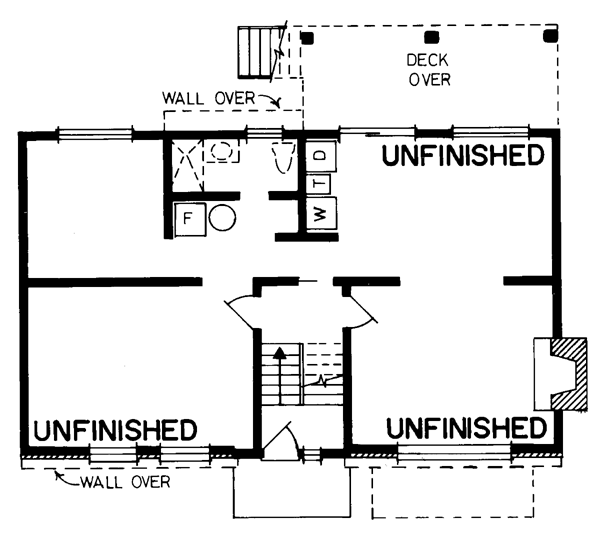

BASEMENT Plan – westhomeplanners.com
