Plan No.202011

Nothing Was Missed

Nothing was missed when this charming little A-frame was designed. At the rear entrance...there are a stacked washer and dryer, a large closet for coats and skis and even a bench to make putting on winter footwear easier. A very roomy family area at the front features an island kitchen and a spectacular vaulted ceiling. Access to a spacious deck is made easy via french doors in the dining room. The open staircase leads you up to the sleeping loft which can be either closed off as shown or open to the living area below. This design measures 24'0 x 38'0 not including the decks. See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.

Specifications

Total 1115 sq ft

  • Main: 828
  • Second: 0
  • Third: 0
  • Loft/Bonus: 287
  • Basement: 0
  • Garage: 0

Rooms

  • Beds: 3
  • Baths: 1
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0
  • Second:
  • Third:
  • Loft/Bonus: 8
  • Basement:
  • Garage:

Details

  • Exterior Walls: 2x6
  • Garage Type:
  • Width: 24'0
  • Depth: 38'0

Roof

  • Max Ridge Height: 26'0
  • Comments: (Main Floor to Peak)
  • Primary Pitch: 13/12
  • Secondary Pitch: 0/12

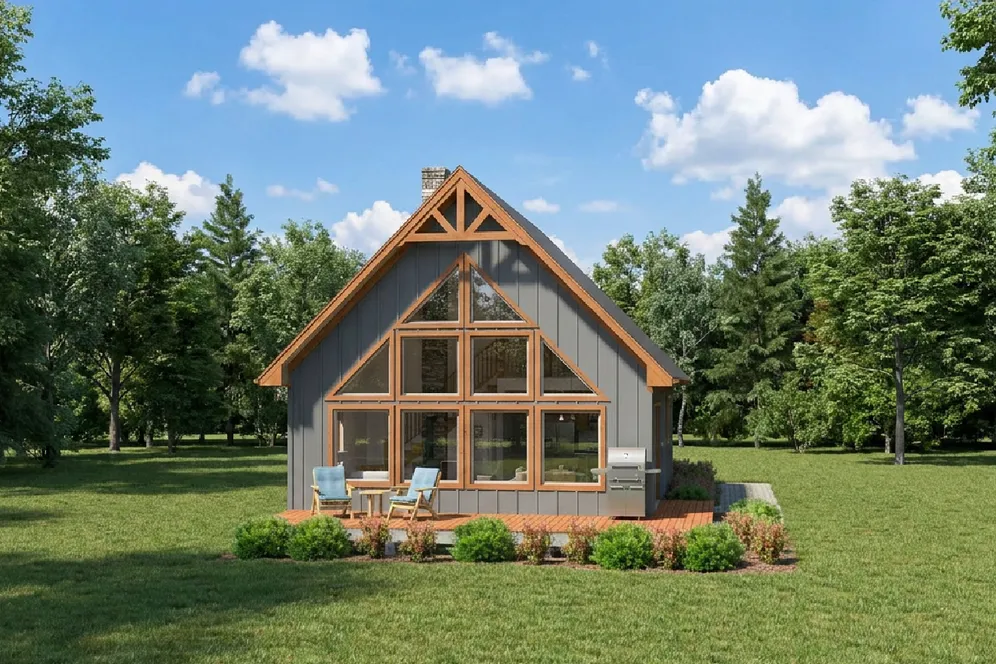

Full Rendering – westhomeplanners.com

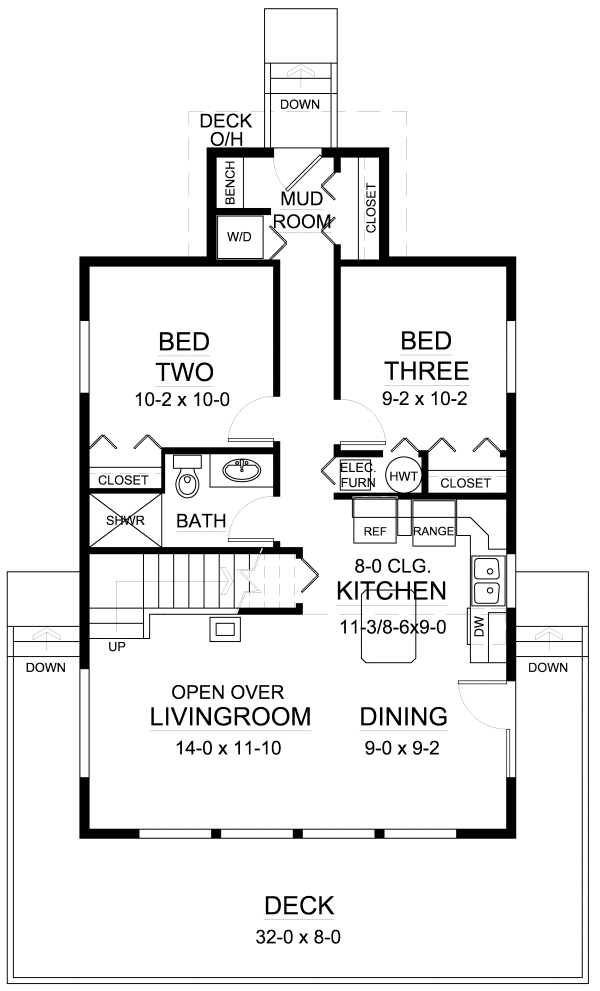

MAIN Plan – westhomeplanners.com

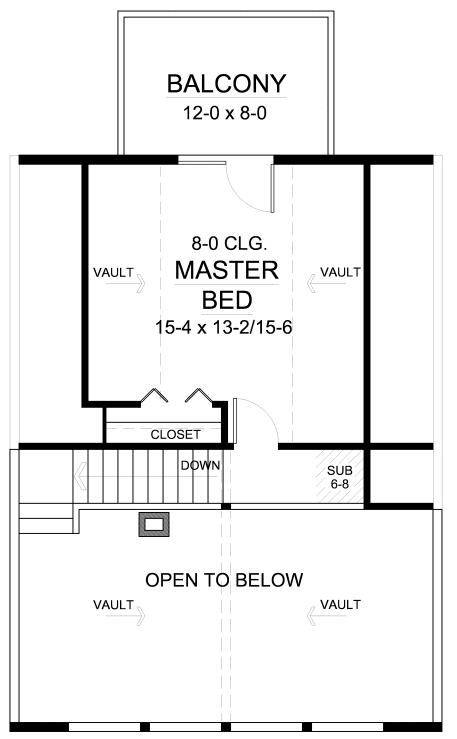

SECOND Plan – westhomeplanners.com

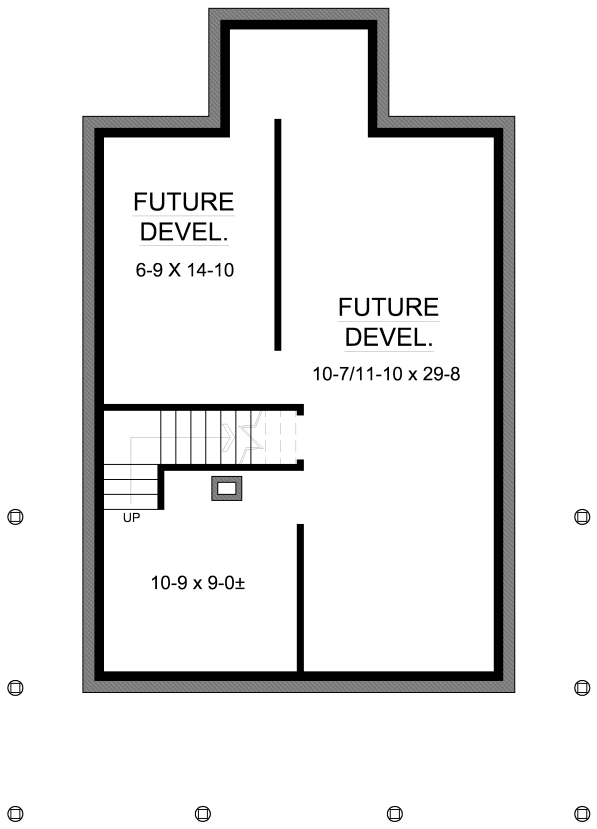

BASEMENT Plan – westhomeplanners.com

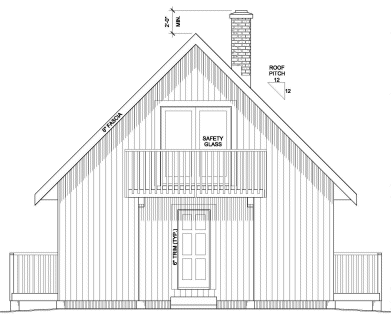

REAR Elevation – westhomeplanners.com

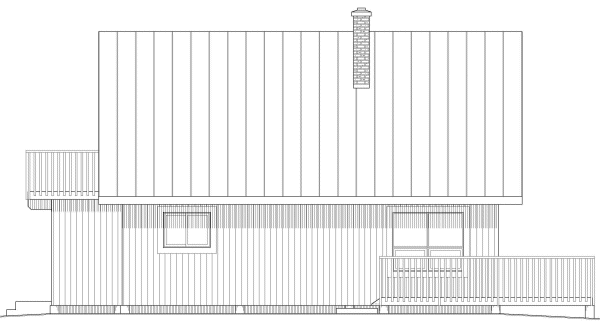

LEFT Elevation – westhomeplanners.com

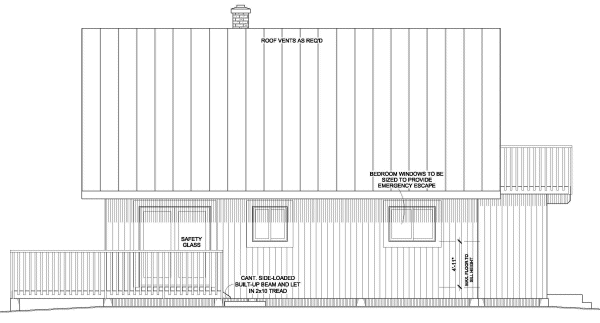

RIGHT Elevation – westhomeplanners.com
