Plan No.131049

Practical Narrow Lot Plan

Practical bi-level design is suitable for a compact lot. Spacious combined living and dining rooms feature vaulted ceilings and a cozy fireplace. Gourmet kitchen is complete with a center work island, pantry, desk and flows into the adjoining bayed breakfast nook which opens onto the large sundeck. Living room views the railed staircase and foyer below. Lower level may be completed at a later date to reduce building costs. Additional ceiling height information: Living Room - 9'6".

Specifications

Total 1301 sq ft

  • Main: 1301
  • Second: 0
  • Third: 0
  • Loft/Bonus: 0
  • Basement: 1041
  • Garage: 260

Rooms

  • Beds: 3
  • Baths: 2
  • 1/2 Bath: 0
  • 3/4 Bath: 0

Ceiling Height

  • Main: 8'0"
  • Second:
  • Third:
  • Loft/Bonus:
  • Basement: 8'0"
  • Garage: 9'4"

Details

  • Exterior Walls: 2x6
  • Garage Type: singleGarage
  • Width: 32'0"
  • Depth: 43'0"

Roof

  • Max Ridge Height: 21'8"
  • Comments: ()
  • Primary Pitch: 6/12
  • Secondary Pitch: 0/12
Full Rendering – westhomeplanners.com

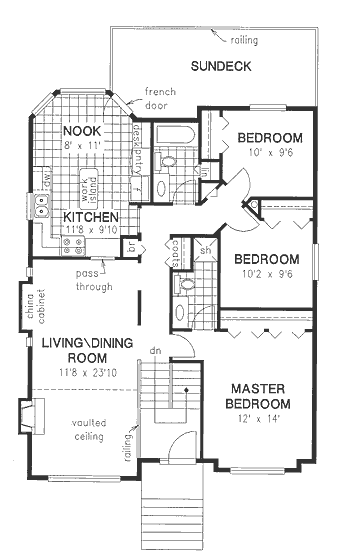

SECOND Plan – westhomeplanners.com
BASEMENT Plan – westhomeplanners.com
REAR Elevation – westhomeplanners.com
